Overhead stirrer 2.200 rpm/40 l

Display for instant reading of speed and torque

Overhead stirrer RG Series, range speed 50… 2.200 rpm, max capacity (H2O) 40 l.

Features

Display for instant reading of speed and torque
Accurate control of the stirring speed
Control of the resistance load with automatic adjustment of the speed
A protection system inhibits the stirrer in case of excessive stress due to continuous overload
Adjustable safety circuit that automatically stops the motor in case of overheating to ensure extreme safety.

Specifications

Note - The endowment of the instrument does not include the stand support and stirring rod; they must be purchased separately.

Optional accessories sold separately

For the complete configuration of the instrument you can choose from the following items.

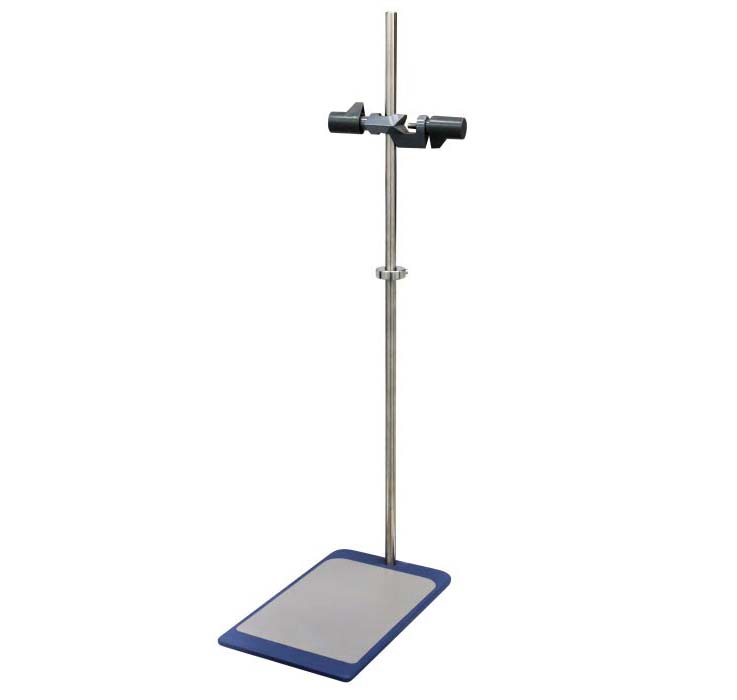

Support for overhead

Code: RG/2200/5153

Universal holder for stirrers.

Stirring rods

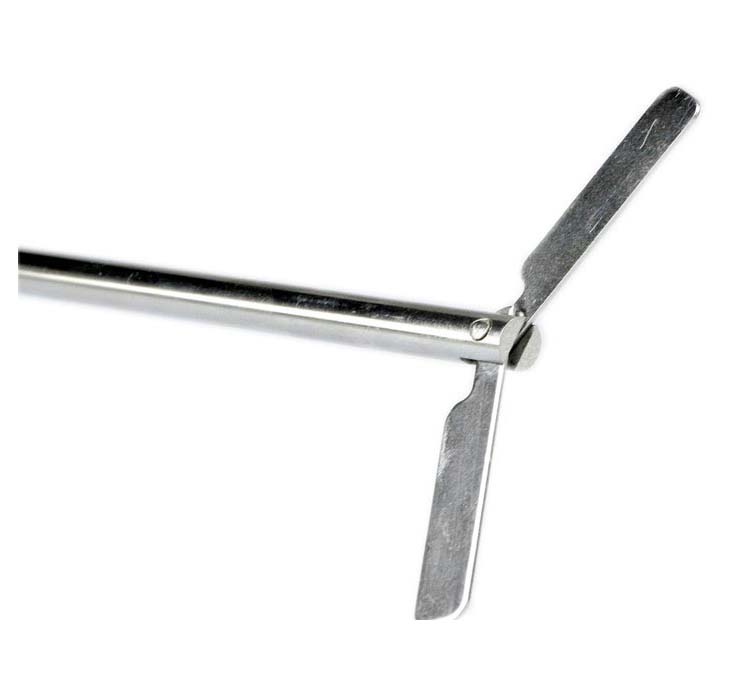

Code: RG/2200/5193	Stirring shaft with floating blades - Type 1 Characteristics: The two blades opening to the increase of the speed, generate an axial flow from top to thebottom of vessel. Use: This shaft is particularly indicated for the stirring in narrow neck vessels, for example flasks. Dimensions: Ø 89×400 mm

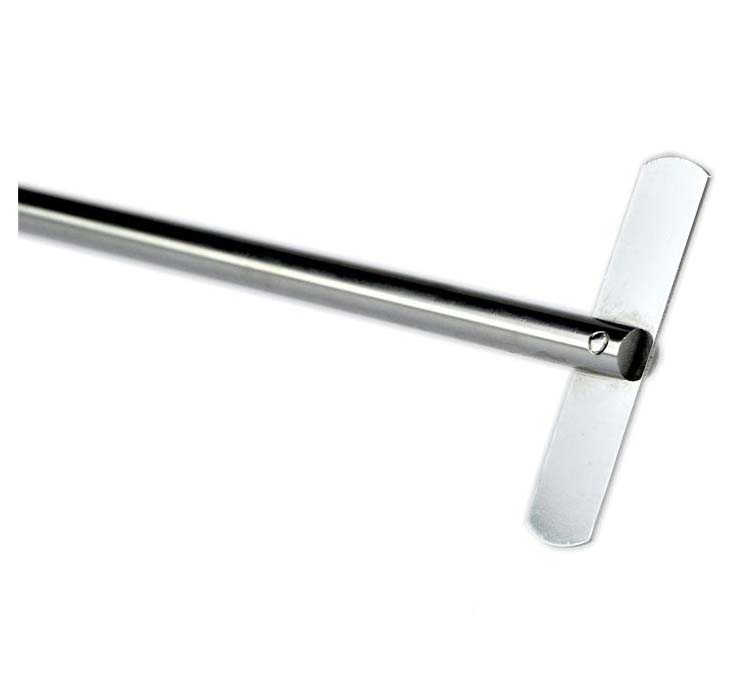

Code: RG/2200/5173	Stirring shaft with fixed blade - Type 2 Characteristics: It generates an axial flow from top to the bottom of vessel.. Use: It used at medium-high speed to swirl light solids, for flocculation, to mix thickening agents, to stir sludge, etc Dimensions: Ø 60×400 mm

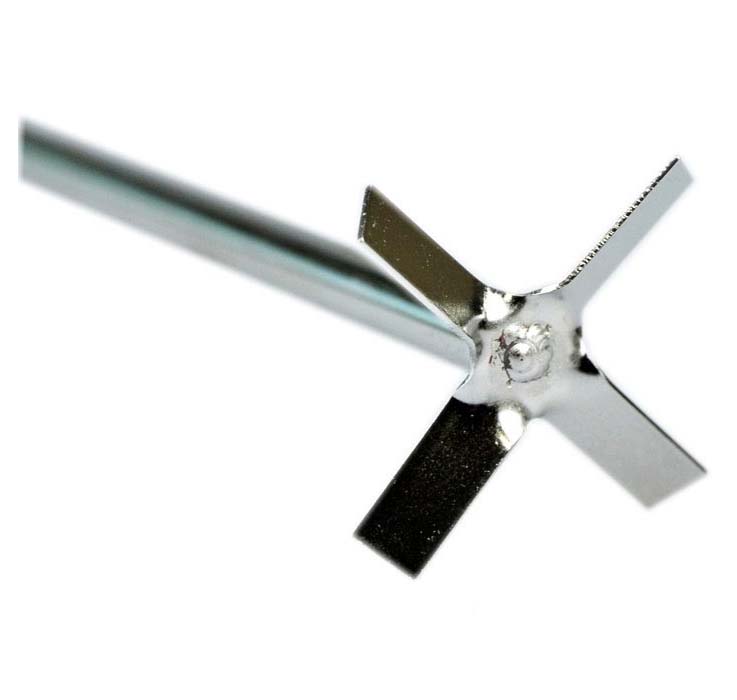

Code: RG/2200/5163	Stirring shaft with propeller - Type 3 Characteristics: This is the standard stirrer shaft. It generates an axial flow in the vessel, with suction of the substance from bottom to the top and localized appearance of shear forces. Use: It used at medium-high speed to swirl light solids, for flocculation, to mix thickening agents, to stir sludge, etc Dimensions: Ø 50×400 mm

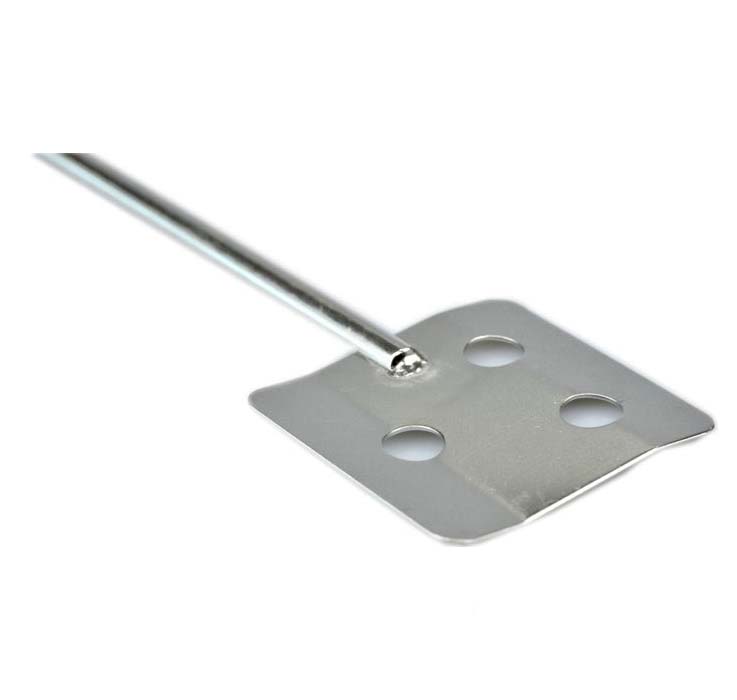

Code: RG/2200/5183	Stirring shaft with 3 holes blade - Type 4 Characteristics: It generates a tangential flow with reduced turbolence and gentle mixing of the sample. Use: It used at low speed when it is necessary a good exchange of hot of the products that you hvae to mix. Dimensions: Ø 68×400 mm
