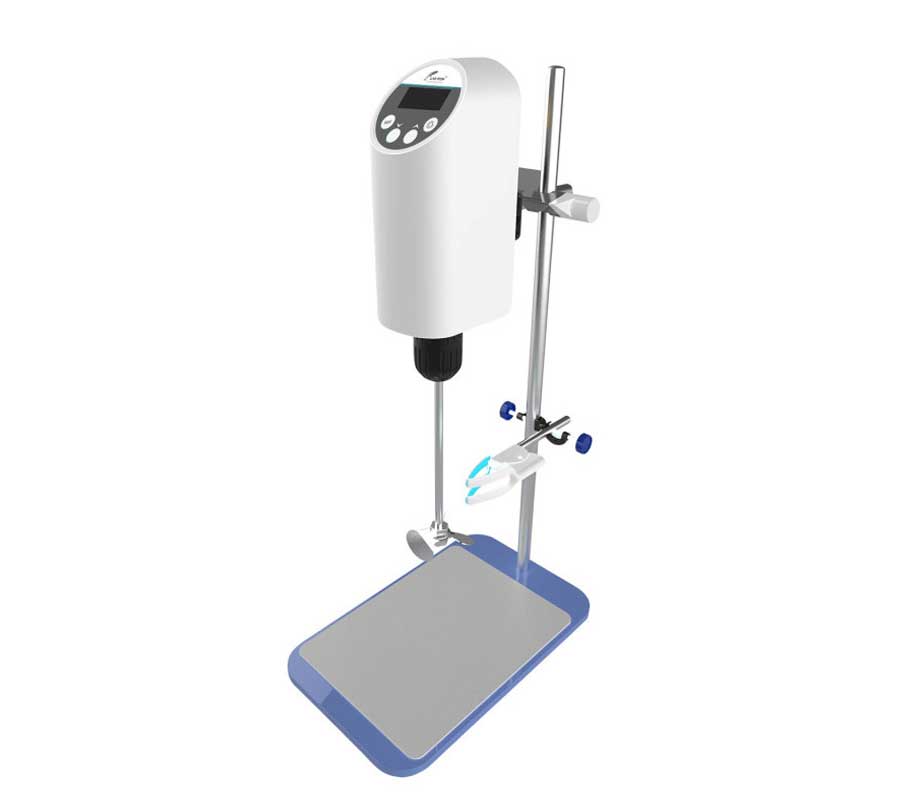

Digital overhead stirrer 2.000 rpm/20 l

Complete configuration with support stand and stirring rod

Digital overhead stirrer offered in the complete configuration of stand and stirring rod.

Ideal for a wide range of applications requiring agitation of medium and high viscosity fluids, including liquid/solid mixtures.

Mainly used in chemical synthesis, pharmaceutical, physical and chemical analysis, petrochemical, cosmetic, health product, food, biotechnology etc.

Instrument features

  • Model with gradual action with no danger of splashing, gentle start of the stirring rod
  • Digital control with panel equipped with membrane keyboard
  • Accurate control of stirring speed with a standard deviation of ±1 rpm
  • Stability of agitation independent of loading conditions in the indicated viscosity range
  • Torque power automatically varies as fluid viscosity changes so that agitation speed remains constant
  • Compact and sealed structure, totally impervious to any spray or external agent, so as to protect internal parts from corrosive action
  • Stable and accurate operation even for long-time continuous operation
  • Motor overload protection

Technical specifications

ModelDigital
Max stirring volume20 l
Motor power IN/OUT200/180 W
Voltage240 V/50-60 Hz
Timer0÷999 min
Power210 W
Rotate speed range100÷2.000 rpm
DisplayLCD
Speed increment/decrement20 rpm
Max Torque40 N.cm
Overload protectionYES
Max viscosity30.000 mPas
Total dimensions200×315×600 mm
Weight10 kg
Protection modeIP 42
Normative referenceDIN EN60529
Allowed ambient conditions5÷40°C / max 80% U.R.

To order

CodeDescription
JL/020/212Digital overhead stirrer, complete configuration of stand and rod with stirring blade
