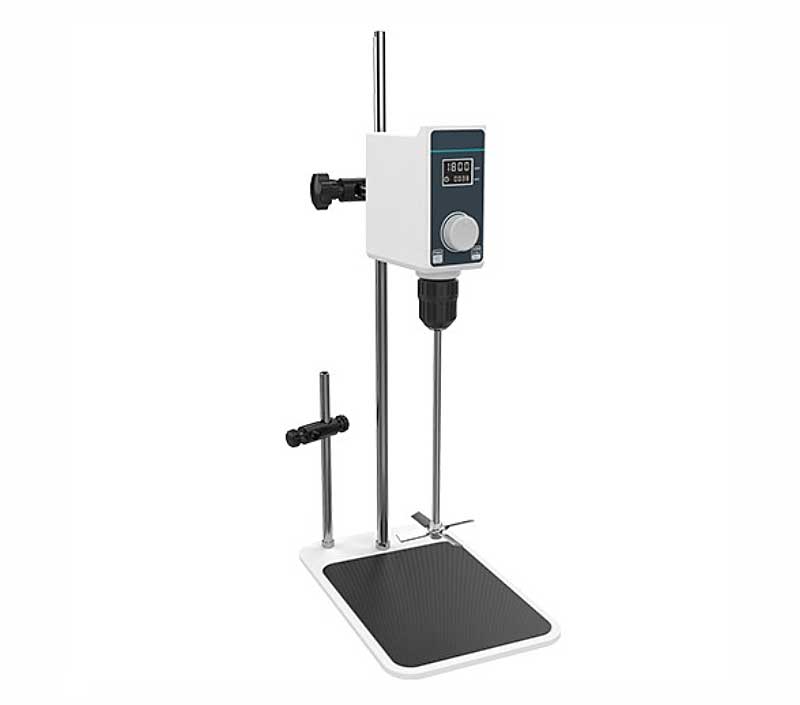

Digital overhead stirrer 1.200 rpm/20 l

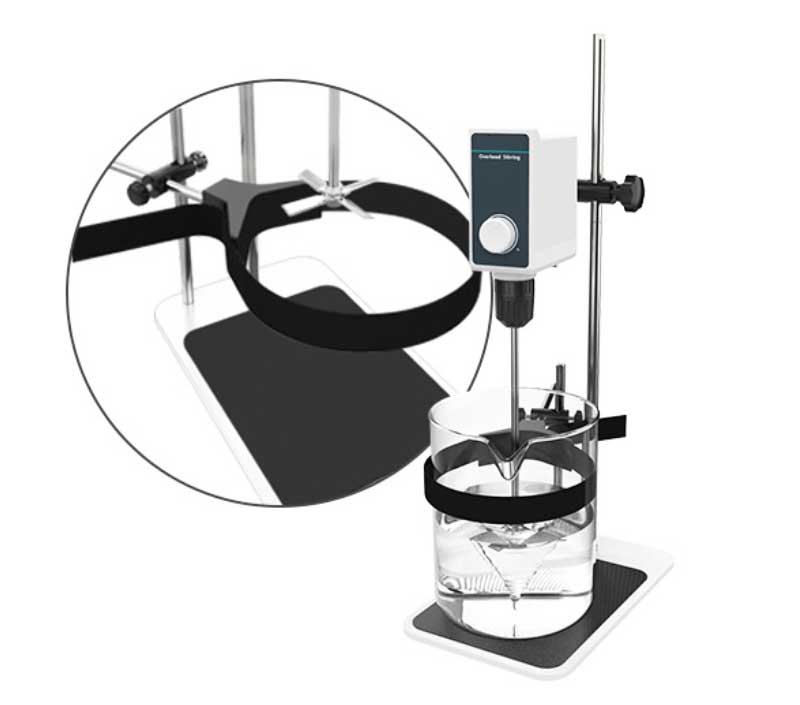

Complete configuration of support stand, beaker and stirring rod

Digital overhead stirrer offered in the complete configuration of stand, beaker with attachment strap and stirring rod.

Ideal for a wide range of applications requiring agitation of medium and high viscosity fluids, including liquid/solid mixtures.

Mainly used in chemical, pharmaceutical, physical synthesis and analysis in chemical, petrochemical, cosmetic, health products, food, biotechnology etc.

Features

Model with gradual action with no danger of splashing, gentle start of stirring rod

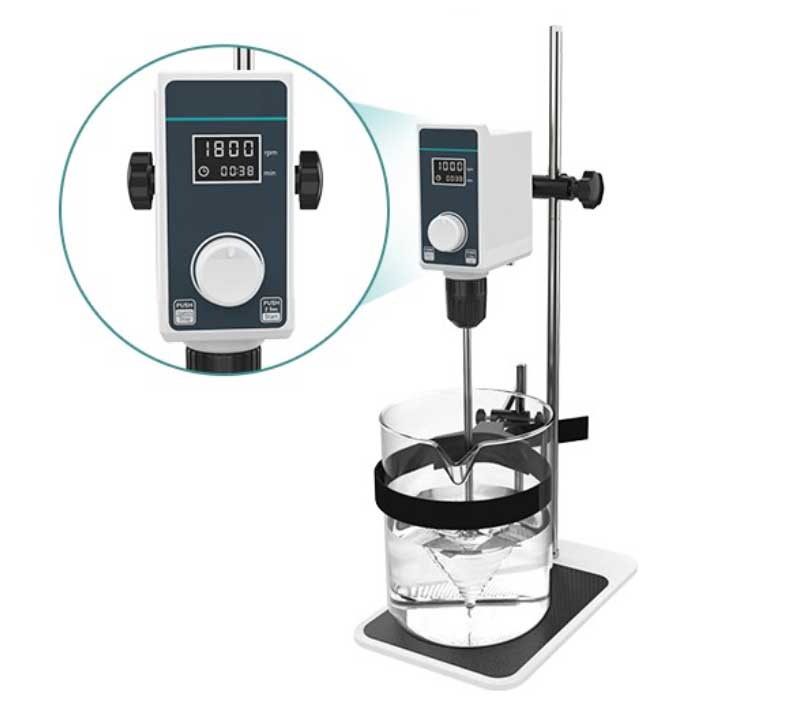

Digital control with large-display control panel displaying test parameters
Accurate control of stirring speed
Stability of agitation independent of loading conditions in the indicated viscosity range
Torque power automatically varies as fluid viscosity changes so that agitation speed remains constant
Compact and sealed structure, totally impervious to any spray or external agent, so as to protect internal parts from corrosive action
Stable and accurate operation even for long-time continuous operation
Motor overload protection

Technical specifications

Model	Digital
Max stirring volume	20 l
Motor	Brushless
Power supply	240 V/50-60 Hz
Timer	23 h /59 min
Power	60 W
Speed range	50-1.200 rpm
Max torque force	30 N.cm
Overload protection	YES
Max viscosity	16.000 mPas
Total dimensions	147×70×195 mm
Weight	7,7 kg
Operating conditions	5÷40°C / max 80% U.R.

To order

Code	Description
JL/020/204	Overhead stirrer complete configuration of stand, beaker with belt and rod with agitation blade
