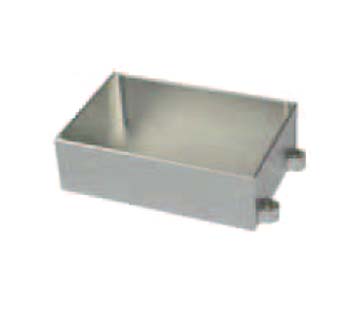

Block "water bath" 103×67×30 mm flat bottom

€ 99.18
iva esc.

ThermoMixer block incubator

Fast mixing speed and integrates three function mixing, shaking and heating function.

Block heater with shaking.

Thermo Shaker Incubator (Heating) is themo shaker incubator with fast mixing speed and integrates three function mixing, shaking and heating function.

Combined with intelligent operation design, it not only can mix various micro volume tube, PCR plate, deep hole plate and micro plate and other common laboratory supplies, but also equipped he function of votexing and heating all kinds of tubes.

It can meet the needs of different users.

Features

Perfect radius and excellent dimensional technology blend with adjustable mixing speed
Programmable
Efficient shaking and temperature control
Restore from power off, recover to the pre-status automatically (deleted)
Microprocessor controlled incubator. Good linearity of temperature control
Precise control of the shaking speed
Timing function
Time range is from 0 to 100 hours
Various blocks to exchange, convenient for replacement
Built-in temperature calibration function and short mixing function
DC brushless motor drive, long life and free of maintenance
Multiple safety protection function
Conform to CE safety standards safe and reliable

Technical specifications

Code	MB/003/003
Speed range	300÷2.000 rpm
Shaking orbit	3 mm (horizontal)
Temp. Control Range	R.T.+5℃ ÷100℃
Temp. Setting Range	5°C÷100 ℃
Temp. Stability	≤±0.3℃
Block Temp. Uniformity	≤±0.3℃
Temp. Display Accuracy	0.1℃
Heating Speed	≤15min (20℃ to 100℃)
Time Range	1min ~99h59min or continuous
Voltage	AC 90V ~230V, 50/60Hz
Power	200 W
Dimension (WxDxH)	196 x 270x 170mm
Net Weight	8.2 kgs

Aluminium blocks

Code	Spec	Dia. of hole	Hole bottom shape

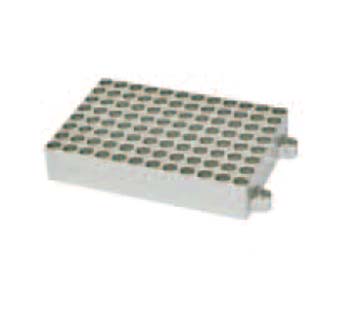

MB/003/004	0.2 ml x 96	6.7 mm	Cone bottom

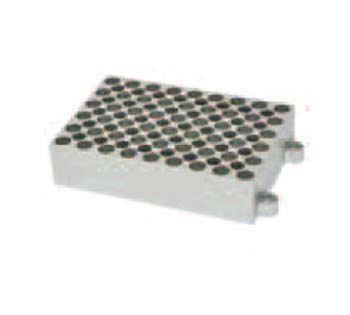

MB/003/005	0.5 ml x 54	8 mm	Cone bottom

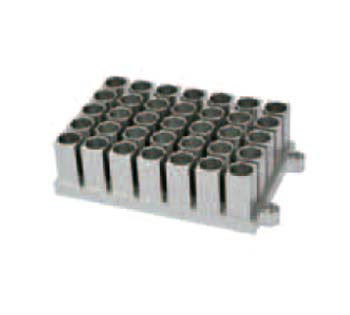

MB/003/006	1.5 ml x 35	10.8 mm	Cone bottom

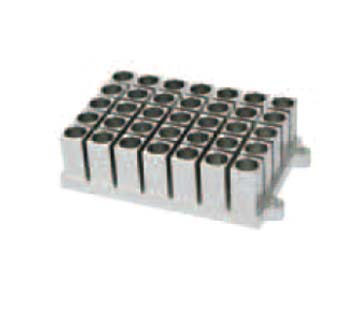

MB/003/007	2.0 ml x 35	10.8 mm	Round bottom

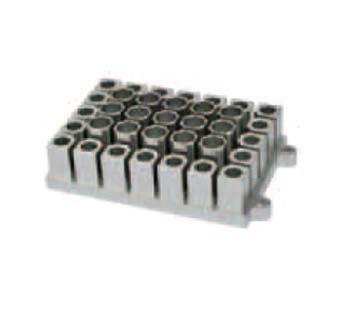

MB/003/008	0.5 ml x 20 1.5ml x 15	8 mm / 10.8mm	Cone bottom

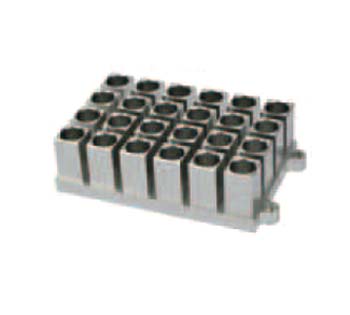

MB/003/009	≤Φ12mm x 24	12 mm	Flat bottom

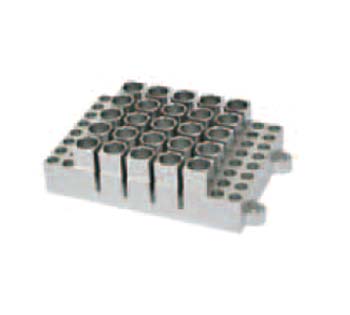

MB/003/010	0.2 ml x 32 1.5ml x 25	6.1 mm / 10.8mm	Cone bottom

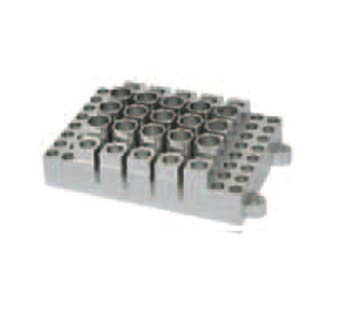

MB/003/011	0.2 ml x 32 0.5 ml x 10 1.5ml x 15	6.1 mm 8 mm 10.8 mm	Cone bottom
MB/003/012	Water Bath	103 x 67 x 30 mm	Flat bottom
MB/003/013	Flat bottom plates	Top size 69 x 107 x 12 mm	Flat plate block
MB/003/014*	5 ml x 24	13.5 mm	Flat bottom
MB/003/015*	15 ml x 12	16.9 mm	Flat bottom
MB/003/016*	50 ml x 6	29.5 mm	Flat bottom
MB/003/019	Cover for non standard blocks*
MB/003/020	Support 96×0,2 ml microtubes
MB/003/021	Support 24×0,5 ml microtubes
MB/003/022	Support 24×1,5/2,0 ml microtubes

* Non-standard height blocks; It is not possible to cover them with the supplied cover.
For cover those blocks it is necessary to buy the accessory lid of upper height cod. MB/003/019
