Block Heater/Cooler with shaking

The all-rounder Orbital mixes, heats and cools reliably with variable inserts

The all-rounder instrument mixes, heats and cools reliably with variable inserts.

Whether blood samples, pharmaceutical agents, DNA/RNA samples or ELISA assays - reaction vials and plates with even the smallest volumes are reliably mixed and tempered in all laboratory applications. No cross-contamination and an optimal mixing result.

In addition, it comes with numerous user-friendly features:

Large and clear display with a convenient menu structure allows for an intuitive operation
Firm quick-release fastener for quick and easy changing of the inserts/attachments as well as an automatic attachment detection
Quick and effective mixing of liquids with up to 3,000 rpm and 1.5 mm shaker diameter
Reduced waiting time through fast heating and cooling rates of up to 6 °C/min (heating) or 2.5 °C/min at set-point temperature above the ambient temperature (cooling, 0.5 °C/min at set-point temperature between ambient temperature and 15 °C below ambient temperature)
Two different speed modes for sample-specific temperature control
Automatic performance of mixing, heating and cooling tasks through programmable ramps

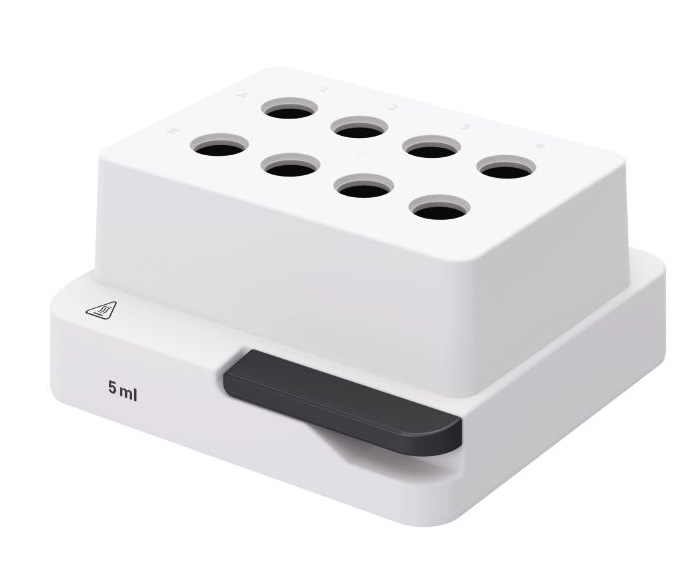

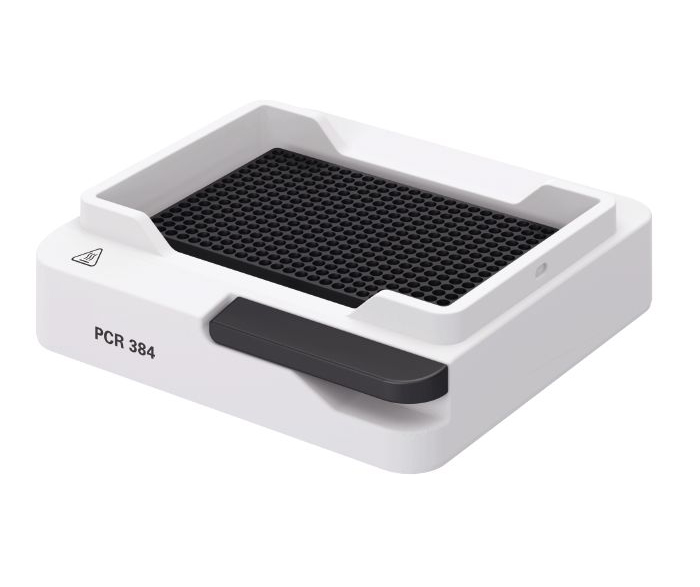

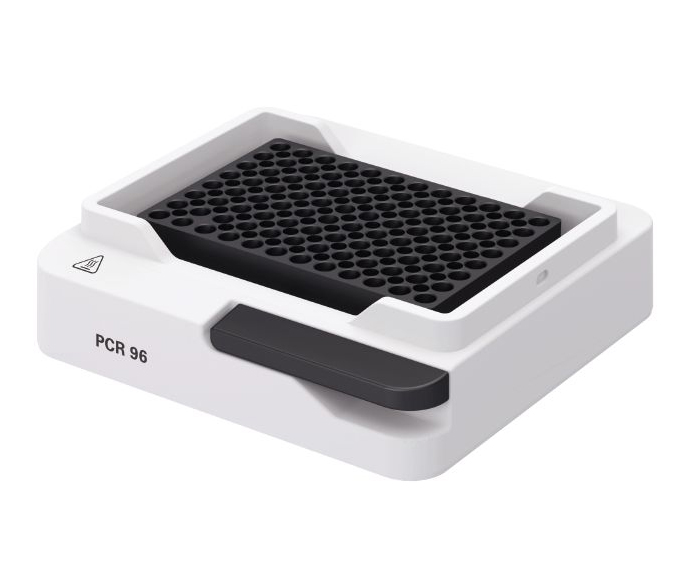

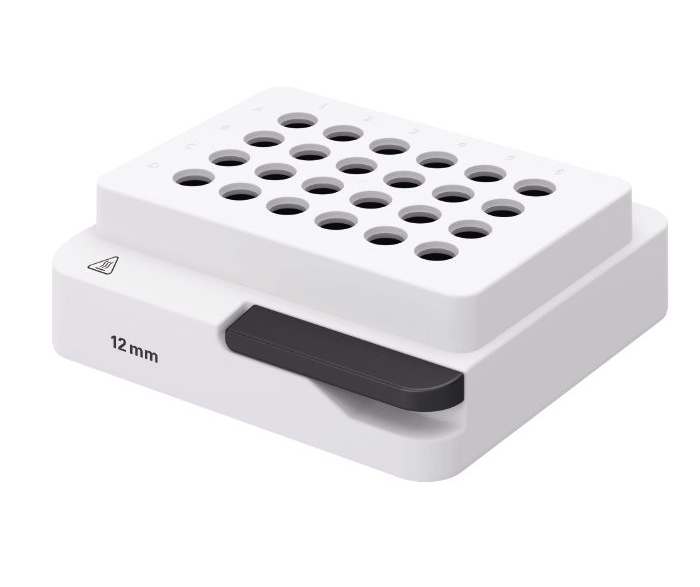

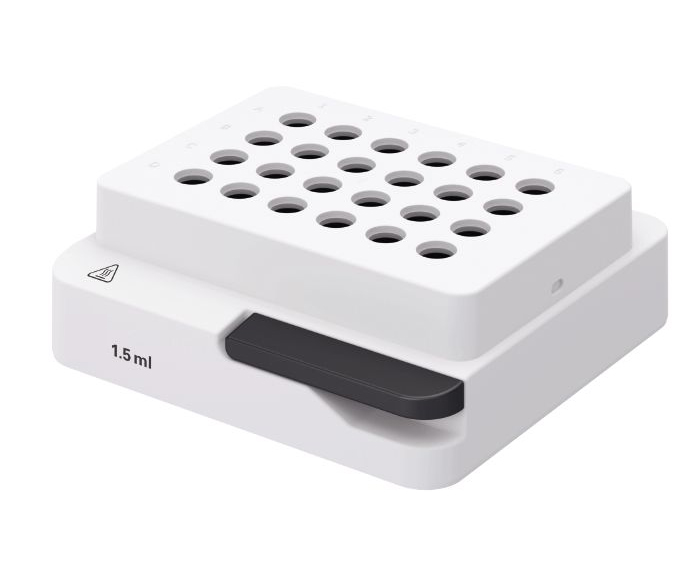

Wide range of inserts for reaction vessels and plates
Intelligent speed adaption to insert, attachment and filling volume
Aluminum die cast housing ensures secure positioning, excellent stability and everyday robustness

The device is ideally suited for numerous applications in laboratories, such as:

Tempering / mixing of samples
Synthesis of cDNA
Enzyme-catalysed linking of RNA or DNA (ligation)
Lysis reactions
Structural change of DNA, RNA and proteins (denaturation)

Technical specifications

Code	IK/3000/0731
Type of movement	orbital
Shaking stroke	3 mm
Maximun load	0.3 kg
Motor rating output	88 W
Permissible ON time	100 %
Speed min (adjustable)	300 rpm
Speed range	0 - 3000 rpm
Speed display	TFT
Speed deviation	30 ±rpm
Speed control	10 RPM Steps
Timer	yes
Timer display	TFT
Time setting min.	1 s
Time setting max.	6000 min
Operating mode	timer, continuous and program operation
Working with microtiter plates	yes
Temperature setting range min.	1 °C
Heating temperature max.	100 °C
Heat output	100 W
Heat control	TFT
Set temperature resolution	1 ±°C
Temperature control accuracy	0.5 ±°C
Temperature stability	0.5 °C
Temperature homogenity	0.5 ±°C
Heating rate	6 °C/min
Temperature display	yes
Cooling Rate	0.8 °C/min
Cooling Power	72 W
Number of exchangable attachments	10
Dimensions (W x H x D)	216 x 127 x 351 mm
Weight	9.5 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 21
RS 232 interface	yes
USB interface	yes
Voltage	100 - 240 V
Frequency	50/60 Hz
Power input	230 W
Power input max.	230 W
