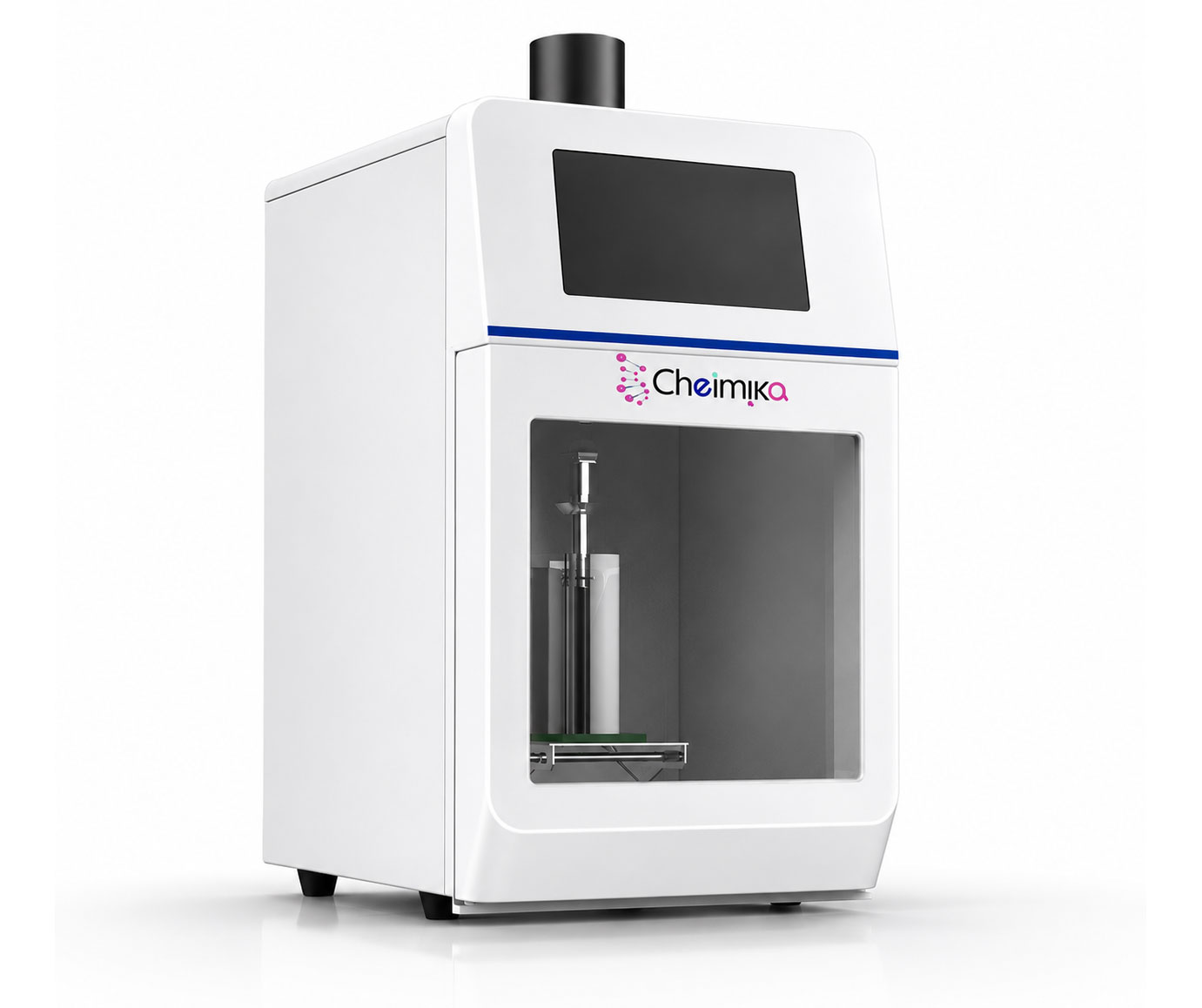

Sonicator 150 W / 2÷100 ml

Complete configuration with anti-noise box, probe Ø 6 mm, software, temperature probe

Ultrasonic Processor Model FS/000250/N

Supplied

  • Ultrasonic disintegrator FS/000250/N
  • Probe Ø 6 mm  (range volume 2÷100 ml)*
  • Noise  insulation box
  • Lift table
  • Temperature probe
  • Software

* Also available Ø 2 (150 μl ÷ 5 ml) / Ø 3 mm  (500 µl ÷50ml) /  Ø  8 mm  (5÷200ml) optional probes

Major Functions

  • Auto-tuning for convenience of use and optimal processing efficiency
  • 99h total working time controller, 1s – 99h, count-down time display
  • Working time can be displayed as aggregate number
  • On/off impulse timer: make sure to deal with temperature sensitive sample. On and off can be set from 1s to 99min
  • Automatic amplitude compensation to make the amplitude not changed following the carring
  • All the function can be displayed in the large LCD screen , operation easy, Fully microprocessor controlled and completely programmable
  • Configuration : temperature probe , temperature display and protection when the temperature is over limition

Common applications

  • Mixing, blending, emulsifying, and processing solutions
  • Reducing particle size of suspensions
  • Dispersing suspensions
  • Disrupting cells
  • Catalyzing chemical reaction

Technical parameters

  • Model:FS/000250/N
  • Output Power: 150 W
  • Frequency:20 KHz
  • Timer: LED 1s – 99 hours adjustable
  • Power adjustable: 0÷100%,
  • Impulse : number closed loop, open loop: set:1s-99min
  • Piezoelectric frequency energy converter: CV33
  • Lead zirconate titanate (PZT) pyroelectric ceramics
  • Diameter:50 mm Length:150 mm Weight:360 g
  • Standard probe: titanium alloy material TI-6AL-4V
  • Diameter (probe):6 mm (can also choose Ø 2/3/6/8 mm)
  • Processing volume: 2÷100 ml
  • Total length:118 mm
  • Weight:80 g
  • Temperture sensor: range 0÷300°C
  • Power Supply:220V / 50Hz
