Oven "Basic" 50 l

Natural convection oven, net volume 50 l, with "Basic" digital PID controller

Natural convection oven, net volume 50 l, with "Basic" digital PID controller with limited number of adjustment keys for easy parameter setting.

Features

  • Working range: 5 °C above ambient temperature up to 300 °C
  • Net volume 50 liters
  • Digital PID controller with limited number of adjustment keys for easy parameter setting
  • Wide backlit LCD display for simultaneous reading of the set temperature, the real one, and all other operating parameters
  • Visual and audible Alarm be disable by the operator
  • Digital timer with a range of programming 1 min - 99 h and 59 min. and continuous function
  • Possibility to set a delay in the start of the heating cycle
  • Temperature limiter adjustable work by the operator for the protection of the samples (function 'safe temperature')
  • Safety class 3.1 with double digital limiters of temperature and additional fluid expansion limiter
  • Passage hole of 5 mm diameter on the roof as standard for insertion of an external temperature sensor to control or to certificate of the internal temperature
  • Stainless steel chamber with supports for the shelves completely removable for easy cleaning

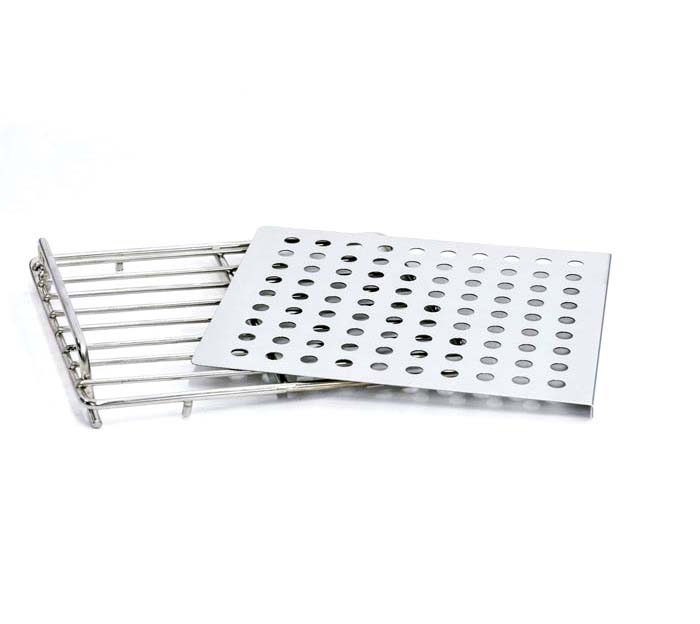

  • Supplied with two wire shelves
  • The minimum heating times and the reduced heating power guarantee low energy consumption in each application
  • Supplied with calibration report at 150 ° C executed with instrument Accredia certificated



Controller "Basic"

"Basic" the new version of the line regulators, allow an easy setting of all operating parameters and an optimal temperature control.

The large backlit display clearly shows in every moment the temperature set and that one inside as well as other parameters.

The introduction of user friendly icons makes interpretation of the functions and commands extremely intuitive.

Moreover the limited number of adjustment keys ensures operability very simple and intuitive.

  • Wide backlit LCD display
  • Icons easy to read
  • Timer and continuous function
  • Visual and sound alarm
  • Fan speed control (High, Medium, Low)
  • Delay of starting
  • Safety temperature limiter for samples protection



Specifications

Code RG/41100002
Usable volume 50 l
Max temperature / Resolution +300 / 0,1 °C
Temperature homogeneity at 150 °C ± 3,5 °C
Temperature variation at 150 °C ± 0,5 °C
Heating up time at 150 °C 16 min
Timer 99:59 hh:min e ∞
Safety class 3.1
Power supply / Nominal wattage 230 V / 1000 W
Internal dimensions (W x H x D) 400 x 420 x 330 mm
Number of shelves (standard/max) 2/5
Useful min. distance between shelves 50 mm
Max load for shelf 15 kg
External dimensions (W x H x D) 665 x 635 x 470 mm
Weight 53 kg
