Oven "Professional" 50 l

Forced air circulation oven, net volume 50 l, with "Professiona" digital PID programmable controller

Forced air oven, net volume 50 l, with "Professional" programmable digital PID controller, 7 programs with 10 step each ( temperature, time ) and also one basic program single-step operation ( temperature, time ).

The forced air oven controls very efficiently the temperature starting from 10 °C above ambient temperature up to 300 °C.

The forced air circulation, adjustable in three levels (High, Medium, Low), guarantees a perfect air replacement and homogeneity of temperature in every parts of the chamber.

Features

  • Range: from 10 °C above ambient temperature up to 300 °C
  • Net volume of 50 liters
  • Digital PID controller with limited number of adjustment keys for easy parameter setting
  • Wide backlit LCD display for simultaneous reading of the set temperature, the real one, and all other operating parameters
  • Visual and audible Alarm be disable by the operator
  • Digital timer with range of programming 1 min - 99 h and 59 min. and continuous function
  • Possibility to set a delay in the start of the heating cycle
  • Temperature limiter adjustable work by the operator for the protection of the samples (function 'safe temperature')
  • Safety Class 3.1 with double digital limiters of temperature and additional fluid expansion limiter
  • Passage hole of 5 mm diameter on the roof as standard for insertion of an external temperature sensor to control or to certificate of the internal temperature
  • Stainless steel chamber with supports for the shelves completely removable for easy cleaning

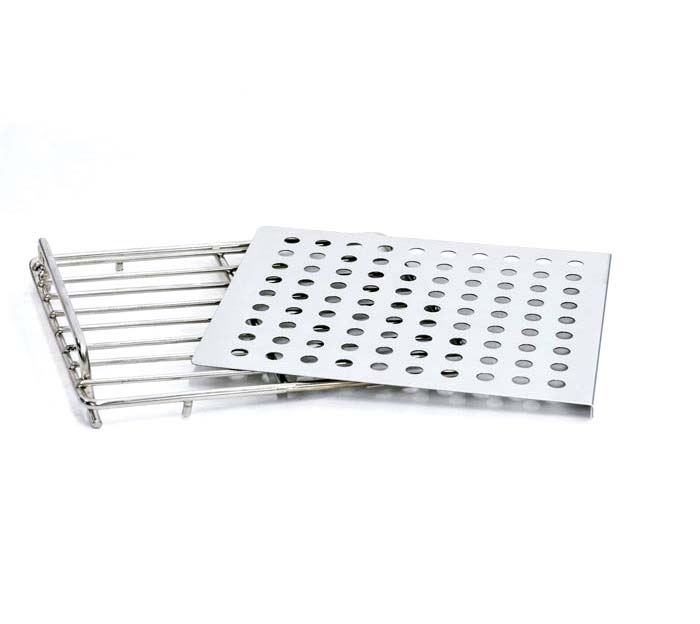

  • Supplied with two wire shelves
  • The minimum heating times and the reduced heating power guarantee low energy consumption in each application
  • Supplied with calibration report at 150 ° C executed with instrument Accredia certificated.



Controller "Professional"

"Professional" the new programmable version of the line regulators, allow an easy setting of all operating parameters and an optimal temperature control.

The large backlit display clearly shows in every moment the temperature set and that one inside as well as other parameters.

The introduction of user friendly icons makes interpretation of the functions and commands extremely intuitive.

Moreover the limited number of adjustment keys ensures operability very simple and intuitive.

  • 7 programs x 10 steps
  • Wide backlit LCD display
  • Icons easy to read
  • Visual and sound alarm
  • Fan speed control (High, Medium, Low)
  • Repeatable work cycles
  • Delay of program starting
  • Safety temperature limiter for samples protection



Specifications

Code 41100402
Usable volume 50 l
Max temperature / Resolution +300 / 0,1 °C
Temperature homogeneity at 150 °C ± 2 %
Temperature variation at 150 °C ± 0,3 °C
Heating up time at 150 °C 20 min
Timer 99:59 hh:min e ∞
Safety class 3.1
Power supply / Nominal wattage 230 V / 980 W
Internal dimensions (W x H x D) 400 x 415 x 310 mm
Number of shelves (standard/max) 2/5
Useful min. distance between shelves 50 mm
Max load for shelf 15 kg
External dimensions (W x H x D) 665 x 635 x 470 mm
Weight 54 kg
