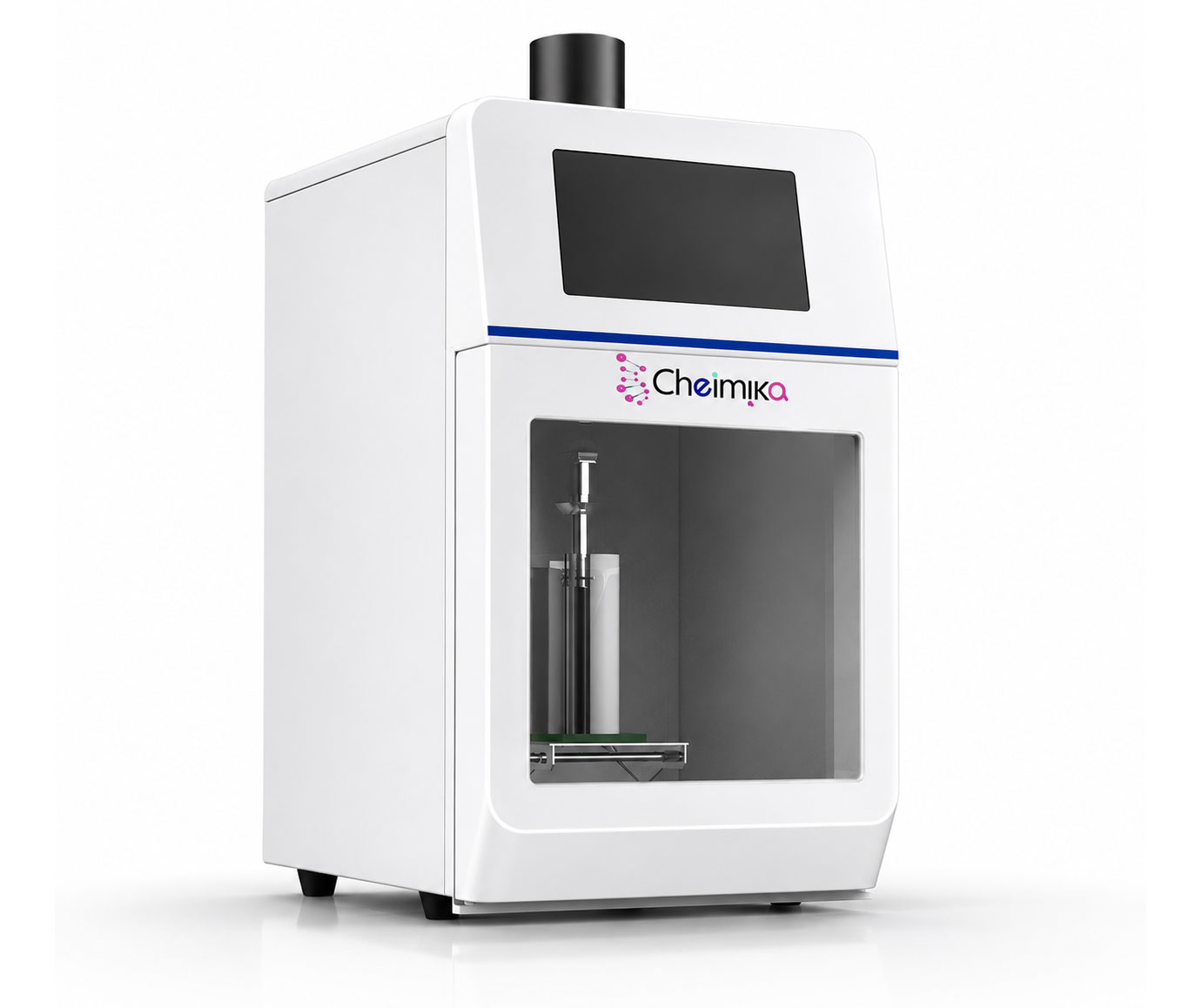

1.800 W Sonicator with Integrated Soundproof Enclosure
Compact model for sample volumes ranging from 1.000 to 2.200 ml
The IKN Series Ultrasonic Cell Disruptors are professional instruments designed for homogenization, cell lysis, nanoparticle dispersion, emulsification, and intracellular compound extraction. By utilizing high-intensity ultrasonic cavitation, they provide rapid, efficient, and highly reproducible processing of biological, chemical, and pharmaceutical samples.
Operating Principle
- Electrical power is converted into a high-frequency signal and transmitted to a piezoelectric transducer, which converts it into high-frequency mechanical vibrations. These vibrations are amplified and transferred to the titanium alloy probe (sonotrode).
- When the sonotrode is immersed in a liquid sample, it generates intense pressure waves that create millions of microscopic bubbles. The rapid collapse of these bubbles produces the phenomenon known as ultrasonic cavitation, which is responsible for the high mechanical energy generated within the liquid.
- The shock waves generated by cavitation create extremely high localized pressures, enabling:
Functions
- Cell and tissue disruption
- Extraction of intracellular components
- Homogenization of biological samples
- Nanoparticle dispersion
- Preparation of stable emulsions
- Acceleration of dissolution and chemical synthesis processes
- Promotion of sonochemical reactions
Ultrasonic cavitation also produces:
- High localized temperatures
- Extremely high pressures
- High-velocity microjets
- Shock waves
- Sonoluminescence phenomena
- Intense mechanical shear forces
These effects enable rapid cell disruption and highly efficient material dispersion.
Main Features
- Automatic resonance frequency tracking (19–26 kHz)
- Automatic amplitude compensation for consistent performance
- 7-inch full-color touchscreen display
- Storage of up to 99 user-defined programs
Operating modes
Configuration Accessories
- TC4 titanium alloy sonotrodes with optimized 2D/3D geometry
- Integrated temperature sensor
- Automatic overload and overheating protection
- Automatic frequency scanning system
- Integrated soundproof enclosure with internal illumination for sample observation during processing
- Adjustable lifting platform
Technical Specifications
Specification Value
Power Supply 110 / 220 V AC – 50/60 Hz
Frequency 19–26 kHz (automatic frequency tracking)
Power Adjustment 1–100% (1% increments)
Timer 1 second – 99 hours
Pulse Interval 1 second – 60 minutes
Program Memory 99 programs
Display 7-inch color touchscreen
Displayed Parameters
During operation, the following parameters are monitored in real time
- Sample temperature
- Operating frequency
- Output power
- Power percentage
- Program status
- User group
- Sonotrode configuration
- Automatic frequency tracking
The operating screen also displays
- Total processing time
- Working time
- Pause time
- Protection temperature
- Power output ratio
- Operating mode
- Selected program
Piezoelectric Transducer
- Piezoelectric material: PZT (Lead Zirconate Titanate)
- Transducer model: CV33
- Sonotrode material: TC4 Titanium Alloy
Available Models
Model Power Sonotrode Working Volume
IFK/SN/002/300 300 W Ø 3 mm 0.1–50 mL
IFK/SN/002/1500 1500 W Ø 16 mm 500–1800 mL
IFK/SN/002/1800 1800 W Ø 18 mm 1000–2200 mL
IFK/SN/002/2000 2000 W Ø 20 mm 1000–3000 mL
Optional Accessories
A wide range of sonotrodes with different diameters is available to accommodate sample volumes ranging from 0.1 mL to 3000 mL, depending on the selected model.
Standard Package Includes
Each system is supplied complete with
- Titanium alloy sonotrode
- Integrated soundproof enclosure
- Adjustable lifting platform
- Temperature sensor
- Transducer cable
- Power cable
- Three spare fuses
- User manual
Advantages
The IKN Series provides a complete solution for laboratories requiring high performance combined with operational safety and ease of use.
Unlike conventional ultrasonic processors with a separate generator, the IKN Series integrates all essential components into a single compact unit, including:
- Integrated soundproof enclosure
- Internal illumination
- Touchscreen control system
- Adjustable lifting platform
- Temperature monitoring
- Automatic frequency tracking
- Advanced electronic protection systems
This integrated design ensures greater operator comfort, reduced noise levels, enhanced safety, and exceptional ease of operation, making the IKN Series ideal for applications in scientific research, biotechnology, microbiology, nanotechnology, chemistry, pharmaceuticals, and sample preparation.
