Sonicator 1.200 W / 50÷2.000 ml

Complete configuration with anti-noise box, probe Ø 20 mm, software, temperature probe

Ultrasonic Processor FS/001200/N

Supplied

  • Ultrasonic disintegrator FS/001200/N

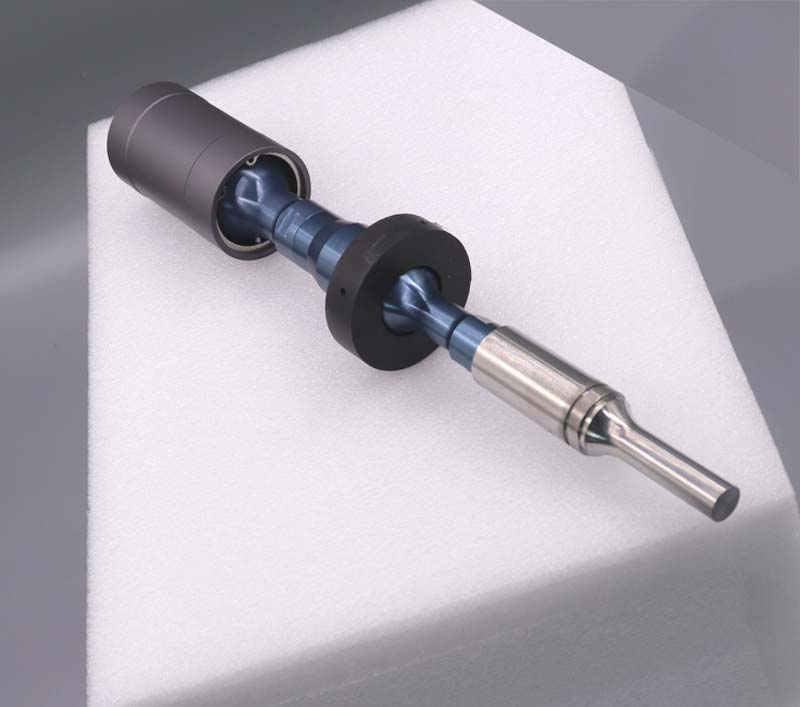

  • Probe Ø 20 mm (range 50÷2.000 ml) *
  • Noise  insulation box
  • Lift table
  • Temperature probe
  • Software

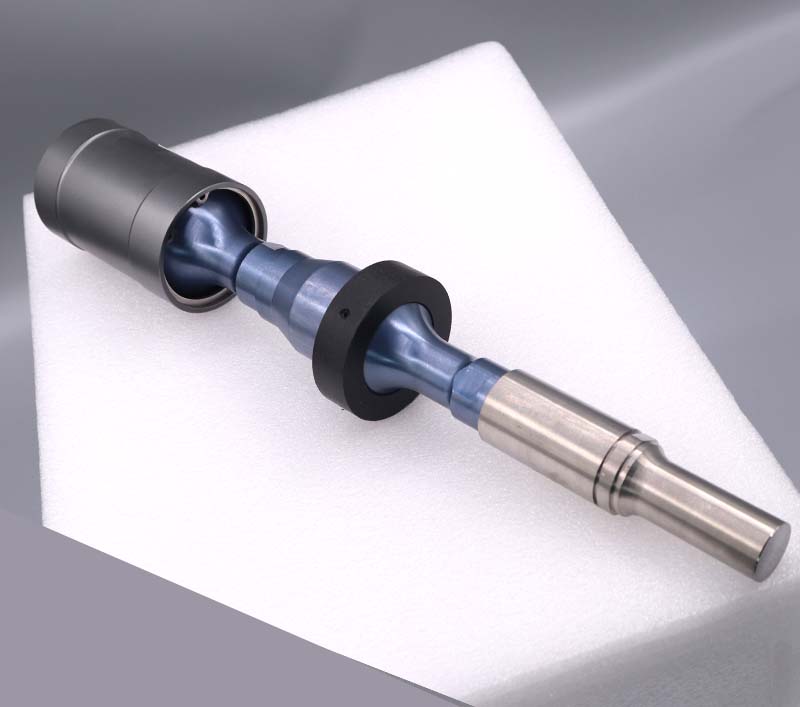

* Also available Ø 13/16/18/25 mm optional probes

Features

  • Auto-tuning for convenience of use and optimal processing efficiency
  • 99h total working time controller, 1s – 99h, count-down time display
  • Working time can be displayed as aggregate number
  • On/off impulse timer: make sure to deal with temperature sensitive sample
  • On and off can be set from 1s to 99min5
  • Automatic amplitude compensation to make the amplitude not changed following the carring
  • All the function can be displayed in the large LCD screen , operation easy
  • Fully microprocessor controlled and completely programmable
  • Configure : temperature probe , temperature display and protection when the temperature is over limition

Common applications

  • Mixing, blending, emulsifying, and processing solutions
  • Reducing particle size of suspensions
  • Dispersing suspensions
  • Disrupting cells
  • Catalyzing chemical reaction

Technical specifications

  • Model：FS/001200/N
  • Output Power:  1.200 W
  • Net weight: 6 Kg
  • Frequency：20KHz
  • Timer： LED 1s – 99 hours adjustable
  • Power adjustable： 0÷100%
  • Impulse ： number closed loop， open loop： set：1s-99 min
  • Piezoelectric frequency energy converter： CV33，
  • Lead zirconate titanate (PZT) pyroelectric ceramics
  • Diameter：63 mm Length：165 mm
  • Weight：650 g Length of cable: 150 cm
  • Standard probe： titanium alloy material TI-6AL-4V
  • Diameter(probe)：20 mm
  • Processing volume:  50÷2.000 ml
  • Total length：137 mm weight: 370 g
  • Temperture sensor: 0÷300°C
  • Power Supply：220V / 50Hz
  • Free accessofies: ABS Plastic soundproof box
  • A stainless steel lifting platform
