260 l refrigerated incubator shaker
High capacity, total control, the incubator shaker for high-volume applications
Large Capacity Stackable Incubator Shaker - This Large Capacity Stackable Incubator Shaker series is designed to meet the growing demands of modern laboratories requiring higher throughput and uncompromising reliability. Engineered for intensive biological and chemical workflows, it delivers stable, repeatable performance when processing large sample volumes across a wide range of applications.
This system is ideally suited for bacterial culture expansion, fermentation processes, complex hybridization protocols, in-depth biochemical analyses, and studies involving enzymes and tissues. Thanks to its enhanced capacity and advanced control features, the BioGrowth Series is a valuable asset in medical research, fundamental and applied biology, molecular and pharmaceutical research, food quality control, and environmental monitoring.
Key Features and Design Advantages
- Where Function Meets Design - Featuring a modern, streamlined appearance, the BioGrowth Series is manufactured using advanced molding technologies. Its robust construction and refined aesthetics are specifically designed to withstand the rigors of high-demand laboratory environments.
- Intuitive 7-Inch Touchscreen Control - A high-resolution 7-inch color touchscreen enables effortless operation and real-time monitoring. Multiple parameters can be viewed simultaneously, ensuring clear oversight and an efficient, user-friendly human–machine interface.

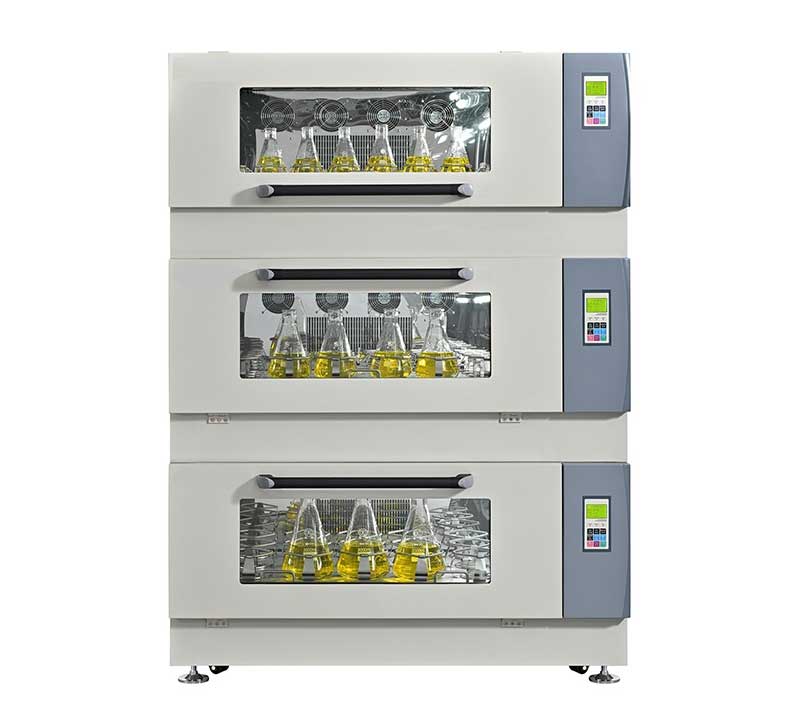

- Flexible Vertical Expansion - Designed to optimize laboratory space, the unit supports double-layer or triple-layer stacking configurations. This vertical expansion significantly increases incubation and shaking capacity without increasing the footprint on the laboratory floor or bench.
- Enhanced Sample Accessibility - The combination of a pull-down outer door and a smooth slide-out shaker tray ensures easy access to samples throughout the chamber. Loading and unloading are simplified, even when handling large or fully loaded trays.
- Thermally Stable Chamber with Full Visibility - A hollow, double-layer safety tempered glass door provides excellent thermal insulation while allowing continuous visual monitoring of samples. This design ensures safety, temperature stability, and uninterrupted observation during operation.
- Stable and Low-Noise Shaking Performance - Advanced single-axis, five-dimensional dynamic balance drive technology delivers exceptionally smooth and stable agitation. Reduced mechanical friction minimizes noise and energy consumption while ensuring long-term reliability and consistent performance.
- High-Quality Components for Long-Term Reliability - The BioGrowth Series is built using carefully selected, high-performance components, including precision servo motors for accurate speed control, efficient variable-frequency compressors, imported double-row bearings, and durable ductile iron elements within the drive mechanism.
- Optional Configurations for Specialized Applications - To meet diverse research requirements, the system can be equipped with a range of optional features, including active humidification, internal illumination for specialized cultures, high-speed oscillation modes, light-shielding solutions, high-adhesion sticky shaker plates, remote communication and monitoring interfaces, controlled gas input, full 3Q validation services for regulated environments, and an integrated micro-printer for on-site documentation.
Technical Specifications
| Model | Digital LCD touchable display |
| Door opening method | Open the door from the front |
| Temperature range | 4~60℃ (Ambient temperature-18℃, minimum 4℃) |
| Temperature uniformity | ±0,1°C |
| Uniformità temperatura | ≤±0.5℃ (@37℃) |
| Ambient temperature range | 4÷35°C |
| Temperature editing | 5 groups/30 segments of curve editing |
| Motion type | Orbital/reciprocating switchable |
| Speed range | 0÷300 rpm |
| Speed resolution | ±1 rpm |
| Amplitude | 25 mm (50 mm optional or 0-50 mm adjustable) |
| Timer | 0÷9999 h / 0÷9999 min |
| Volume | 260 l |
| Exterior dimensions | 1410×790×660 mm |
| Internal dimensions | 1020×595×430 mm |
| Internal usable height | 394 mm |
| Tray size | 920×530 mm |
| Maximum loading capacity | 15×2000 ml
28×1000 ml
40×500 ml
60×250 ml
104×100 ml
126×50 ml |
| Display | LCD touchable display |
| Control | PID microcomputer |
| Circulation | Forced circulation convection |
| Drive mode | Single axis balanced drive |
| Tray material | High quality aluminium alloy oxidized surface treatment |
| Flask clamp material | Stainless Steel Type 304 |
| Chamber material | Stainless Steel Type 304 |
| Decontamination method | UV Sterilization |
| Illumination lamp | 8 W |
| UV Lamp | 8 W |
| Motor power | High quality servo motor |
| Compressor | Variable frequency compressor (energy saving 30%) |
| Heating power | 1300 W |
| Cooling power | 195 W |
| Motor power | 150 W |
| Clamps types | Shake flask, spring, test tube rack, sticky plate, ELISA plate |
| Stackable quantity | 1 layer / 2 layers / 3 layers |
| Power supply | 200-240 V ±10 %, 50/60 Hz |
| Weight | 354 kg |
To order
| Code | Description |
| UN/BG/260/A/ST | Refrigerated incubator with shaking, capacity 260 l |
| UN/BG/260/A/ST/2 | Refrigerated incubator with shaking, capacity 260 l - Double configuration with two stacked units |
| UN/BG/260/A/ST/3 | Refrigerated incubator with shaking, capacity 260 l - Triple configuration with three stacked units
|
