165 l refrigerated incubator shaker
High-capacity, versatile model, stackable up to two units
Designed for basic laboratory activities requiring constant temperature control and efficient agitation, the high-capacity stackable shaker incubator of the UV Series represents a reliable solution for standard biological and chemical applications.
Available in two versions
The instrument is available in a single-platform version and a double-platform version. In the configuration with two stackable units, it is therefore possible to choose either two single-platform models, two double-platform models, or a mixed setup combining both configurations.
It is particularly suitable for essential tasks such as the cultivation of bacterial populations, the execution of simple fermentation protocols, standard hybridization processes, basic biochemical analyses, and the handling of enzymatic or tissue samples.
Its versatility makes it suitable for a wide range of important scientific and industrial fields, including general medical laboratory procedures, basic biological research, essential molecular applications, quality control in the pharmaceutical and food industries, and routine environmental monitoring activities.
Instrument features
- Practical and modern design
- This series features a clean, linear aesthetic and is manufactured using reliable molding processes, resulting in a functional instrument that can be easily integrated into any laboratory environment
- Clear parameter display on LCD screen
- This model is equipped with an intuitive LCD display that allows simultaneous visualization and monitoring of multiple critical operating parameters
- The clear digital interface ensures easy control and straightforward interaction with the instrument settings

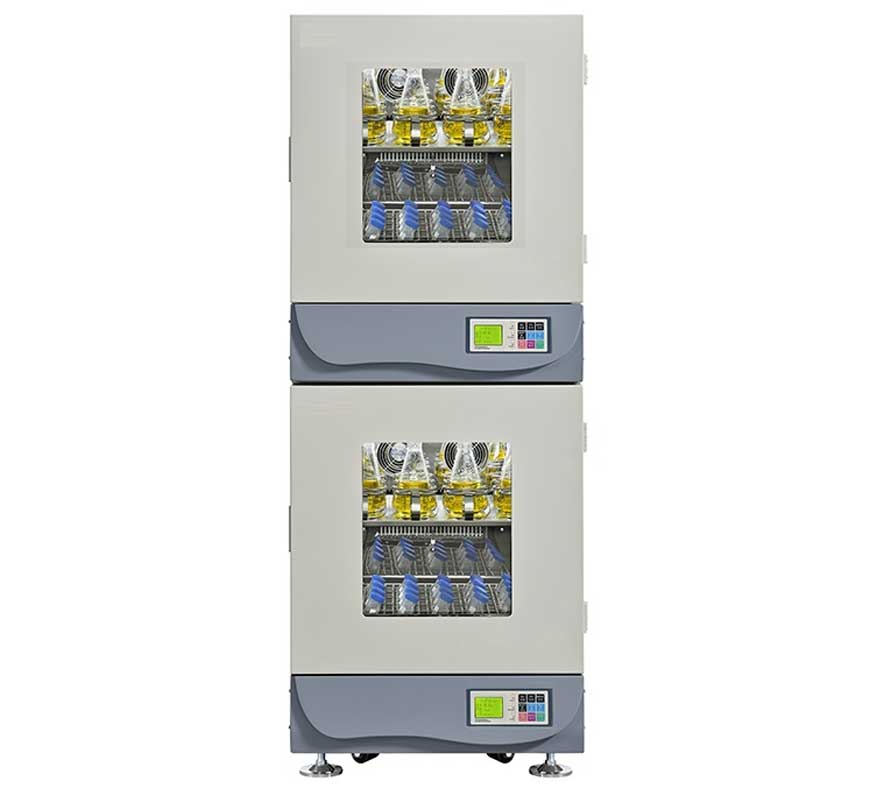

- Efficient use of vertical space with dual stacking
- Designed to address bench space limitations, this unit is specifically engineered for two-level stacking, allowing incubation and shaking capacity to be doubled by making effective use of the laboratory’s vertical space
- Secure chamber with full visibility
- A distinctive feature is the double-layer hollow tempered glass safety door, which provides effective thermal insulation to maintain stable internal temperatures while offering a clear and safe view of flasks or containers during agitation, without disturbing the controlled environment
- Smooth and quiet operation
- The shaking system employs a balanced single-axis transmission technology with five-dimensional dynamic balancing
- This solution ensures smooth and reliable operation with reduced vibration and noise, high operational stability, lower energy consumption, and extended service life
- Robust construction and high-quality components
- The reliability of the series is ensured by the use of selected key components, including high-quality imported compressors for stable temperature control and precision double-row imported bearings, which guarantee smooth and long-lasting shaking motion
- Essential options for functional expansion
- While designed for simple and straightforward operation, the system can be enhanced with essential options for specific applications, including active humidification and illuminated culture. A complete 3Q qualification service is also available for regulated environments
Technical Specifications
| Model | Digital with LCD display |
| Door opening method | Open the door from the front |
| Temperature range | 4~60℃ (Ambient temperature-18℃, minimum 4℃) |
| Temperature uniformity | ±0,1°C |
| Uniformità temperatura | ≤±0.5℃ (@37℃) |
| Ambient temperature range | 4÷35°C |
| Motion type | Orbital/reciprocating switchable for the single-platform model Orbital for the dual-platform model |
| Speed range | 0÷300 rpm |
| Speed resolution | ±1 rpm |
| Amplitude | 25 mm (50 mm or 0-50 mm adjustable for the single-platform model
25 mm for the dual-platform model |
| Timer | 0÷9999 h / 0÷9999 min |
| Volume | 165 l |
| Exterior dimensions | 650×845×810 mm |
| Internal dimensions | 560×520×565 mm |
| Internal usable height | 533 mm for the single-platform model
250 mm (1 to 2 layer)
270 mm (2 to top)
for the dual-platform model
|
| Tray size | 480×440 mm |
| Maximum loading capacity | Single-platform model
4×5000 ml
9×1000 ml
16×500 ml
25×250 ml
39×100 ml
48×50 ml
Dual-platform model
32×500 ml
50×250 ml
78×100 ml
96×50 ml
|
| Display | LCD |
| Control | PID microcomputer |
| Circulation | Forced circulation convection |
| Drive mode | Single axis balanced drive |
| Tray material | Stainless Steel Type 304 |
| Flask clamp material | Stainless Steel Type 304 |
| Chamber material | Stainless Steel Type 304 |
| Decontamination method | UV Sterilization |
| Illumination lamp | 8 W |
| UV Lamp | 8 W |
| Compressor | Variable frequency compressor (energy saving 30%) |
| Heating power | 800 W |
| Cooling power | 334 W |
| Motor power | 80 W |
| Stackable quantity | 1 layer / 2 layers |
| Power supply | 220 V ±10 %, 50/60 Hz |
| Weight | 215 kg |
To order
| Code | Description |
| UN/BG/165/ST | Refrigerated shaking incubator with capacity
165 L, single platform |
| UN/BG/165/ST/2 | Refrigerated shaking incubator with capacity
165 L, dual platform |
| UN/BG/165/ST/D | Refrigerated shaking incubator with capacity
165 L, single platform – complete configuration with two stacked units |
| UN/BG/165/ST/2/D | Refrigerated shaking incubator with capacity
165 L, dual platform – complete configuration with two stacked units |
| UN/BG/165/ST/2/M | Refrigerated shaking incubator with capacity
2 × 165 L – mixed configuration with two stacked units, one with a single platform and the other with a dual platform
|
