“High-Speed” Refrigerated Incubator, 122 L

High-speed, high-throughput shaking model

The high-speed incubator shaker is specifically designed for high-throughput microplate-based cultivation workflows. It is capable of processing well over one thousand biological samples simultaneously, making it a highly efficient solution for biological screening and optimization activities.

It is widely applied in small-scale cell culture, microplate-based cultivation, and high-throughput screening processes, including gene-related analyses, cell selection studies, and other associated applications.

Technical Overview and Key Features

Refined and Functional Design - The system features a modern, streamlined profile developed using advanced molding technologies. Its sophisticated appearance is combined with a robust mechanical structure, engineered to withstand intensive laboratory operations.
Inch Full-Color Touchscreen Interface - The integrated 7-inch touchscreen allows real-time display and monitoring of multiple operating parameters, ensuring intuitive and efficient user interaction.
The interface is fully operable while wearing laboratory gloves and includes a comprehensive range of functions such as one-touch screen locking, clock display, temperature and speed calibration, scheduled operation, backlight adjustment, automatic shutdown upon door opening, parameter storage, program recall, and both fixed-value and programmable operation modes.
High-Precision Temperature Regulation - Temperature control is managed by an intelligent fuzzy PID system with automatic parameter self-tuning.
A three-dimensional airflow circulation design eliminates thermal dead zones within the chamber, ensuring consistent growth conditions across all samples.
Single-Axis Five-Dimensional Dynamic Balance Drive System - The dynamic balance transmission system is based on a central axis combined with a four-point balancing structure. This configuration minimizes mechanical friction, resulting in reduced noise levels, lower energy consumption, superior operational stability, and extended service life.
Servo Motor–Based Precision Speed Control - Shaking speed is regulated with high accuracy through the use of high-torque servo motors. The system supports quiet operation, bidirectional rotation, stepless speed adjustment, and excellent control precision even at elevated speeds.
Carefully Selected Core Components for Reliability - High-efficiency refrigeration technology ensures stable, reliable, and energy-conscious temperature control.
Imported double-row bearings provide enhanced precision and increased load capacity. The main structural components are manufactured from precision-molded ductile iron, finely machined to deliver exceptional stability and long-term durability.
GMP-Oriented Design - The internal chamber is constructed from mirror-finished AISI 304 stainless steel, with rounded internal corners to facilitate cleaning and sanitation.
Advanced safety and data traceability features include three-level user access management, audit trail functionality, historical data review, parameter recall, scheduled operation, automatic stop upon door opening, and temperature and speed correction, supporting both experimental safety and regulatory compliance.

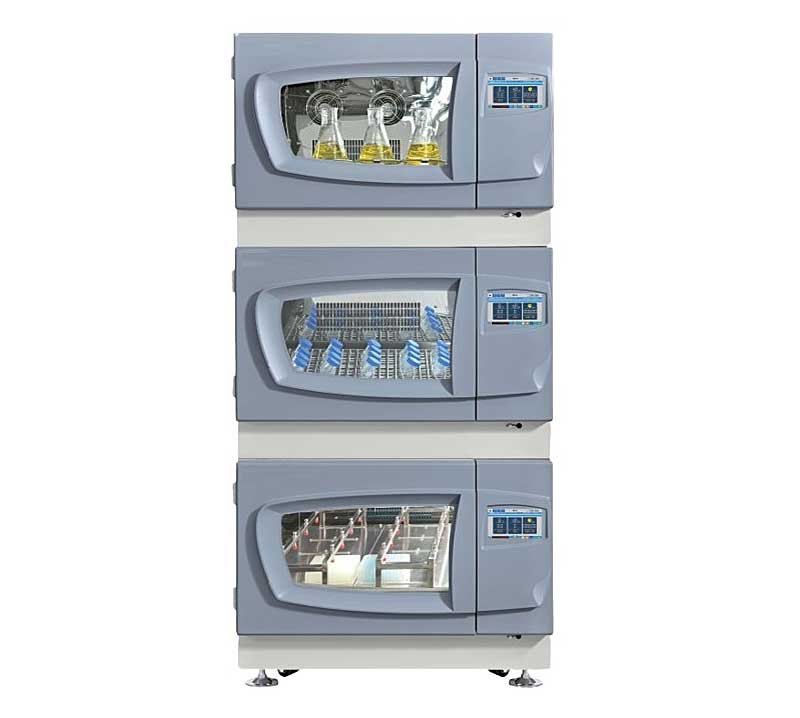

Additional Features and Optional Configurations - Front-opening design allows standalone use or stacking in two- or three-unit configurations.
The 122 L model is equipped with a hollow double-layer safety tempered glass door, providing excellent thermal insulation performance.
Comprehensive protection systems safeguard operators, samples, and the equipment itself.
Optional configurations include active humidification, internal lighting for photosensitive cultures, high-adhesion shaker platforms, remote monitoring and communication, USB data export, full 3Q validation services, and an integrated micro-printer for direct documentation.

Technical Specifications

Model	Digital LCD touchable display
Door opening method	Open the door from the front
Temperature range	4~60℃ (Ambient temperature-18℃, minimum 4℃)
Temperature uniformity	±0,1°C
Uniformità temperatura	≤±0.5℃ (@37℃)
Ambient temperature range	5÷35°C
Temperature editing	5 groups / 30 segments of curve editing
Motion type	Orbital/reciprocating switchable
Speed range	0÷800 rpm (1200 optional)
Speed resolution	±1 rpm
Amplitude	3 mm (1,5 mm optional)
Timer	0÷9999 h / 0÷9999 min
Volume	122 l
Exterior dimensions	910×740×640 mm
Internal dimensions	610×505×395 mm
Internal usable height	380 mm
Tray size	542×445 mm
Maximum loading capacity	5×3000 ml 6×2000 ml 12×1000 ml 20×500 ml 30×250 ml 16 microplate
Display	LCD touchable display
Control	PID microcomputer
Circulation	Forced circulation convection
Drive mode	Single axis balanced drive
HEPA Filter	0,2 µm in-line filter
Tray material	Stainless Steel Type 304
Flask clamp material	Stainless Steel Type 304
Chamber material	Stainless Steel Type 304
Decontamination method	UV Sterilization
Illumination lamp	8 W
UV Lamp	8 W
Compressor	Variable frequency compressor (energy saving 30%)
Heating power	800 W
Cooling power	150 W
Motor power	150 W
Stackable quantity	1 layer / 2 layers / 3 layers
Power supply	220 V ±10 %, 50/60 Hz
Weight	214 kg

To order

Code	Description
UN/BG/120/H/ST	"High Speed" Refrigerated incubator with shaking, capacityv122 l
UN/BG/120/H/ST/2	"High Speed" Refrigerated incubator with shaking, capacity 122 l - Double configuration with two stacked units
UN/BG/120/H/ST/3	"High Speed" Refrigerated incubator with shaking, capacity 122 l - Triple configuration with three stacked units
