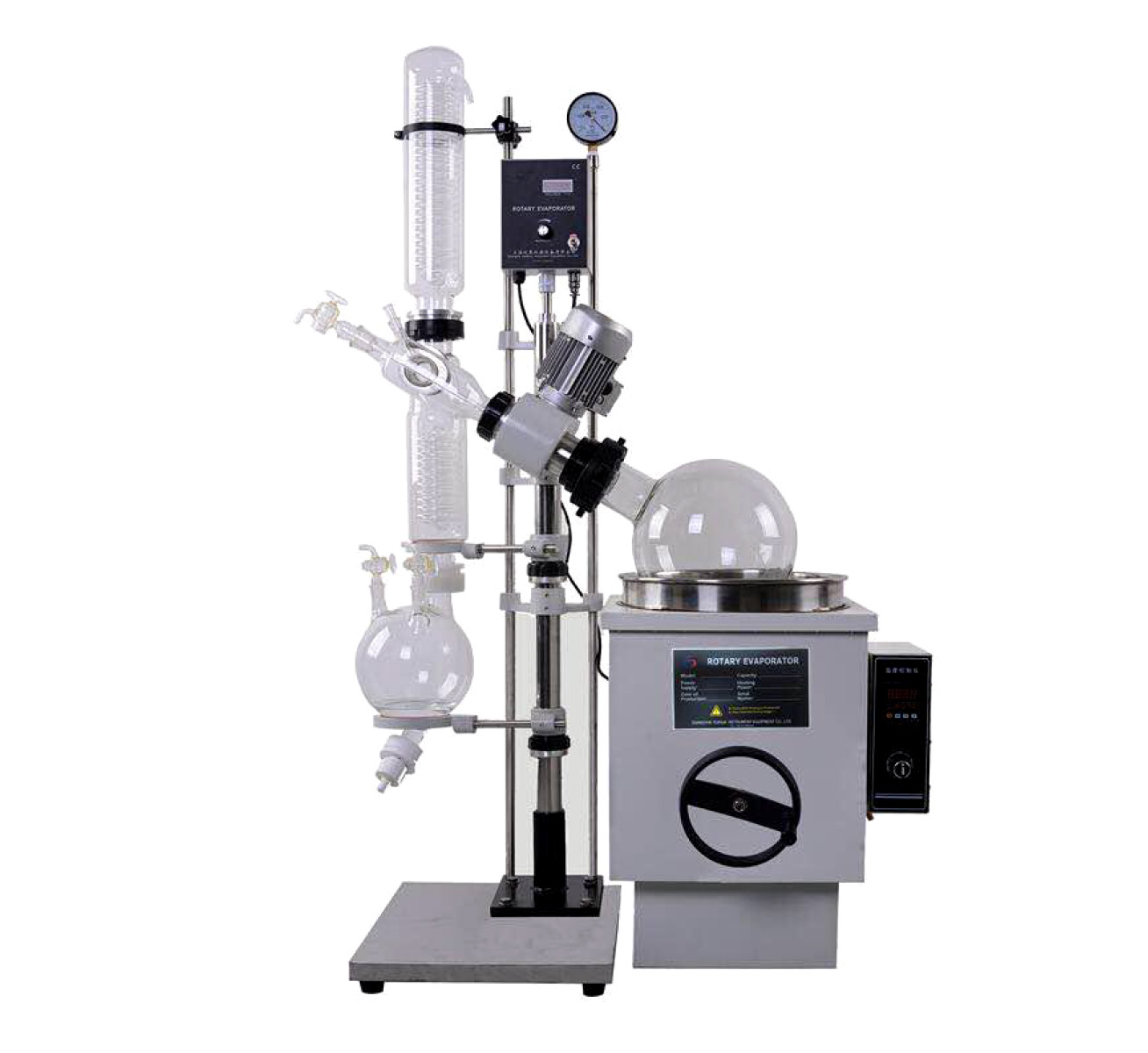

Rotary evaporator 10 l Explosion-proof
With vertical glassware set Vertical, main condenser + vice-condenser
10 l Rotary evaporator.
Rotary evaporator is an extraction system that using the different boiling point of material to seperate target material from a mixture.
It always match with vacuum pump and chiller:
- Vacuum pump can keep the system at better vacuum degree, and lower the boiling point of the liquid

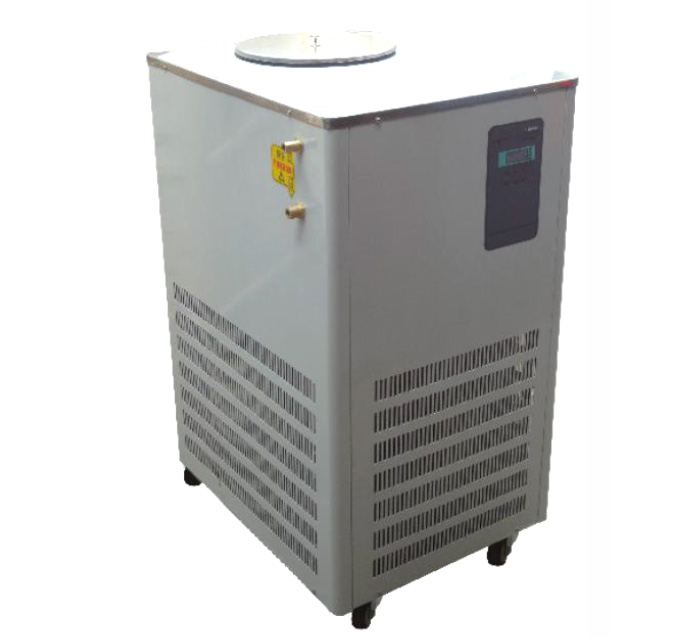

- Chiller can cooling the condenser, improve the efficiency of collection
Rotary Evaporator is widely used in the process like Concentration, Refining, Separation, Crystallization, etc. and mainly applied in Bio-chemical, Pharmaceutical & Fine-Chemical Trades.
Al the configuration of the rotary evaporator is Explosion-proof.
The chiller and the vacuum pump are optional. The complete configuration is represented below
The lowest temperature of standard chiller is -20C, we can customize the chiller with -120C but the price will be higher.
Technical specifications
| Code |
SB/HRE/010 |
| Rotary flask |
10 l |
| Collection flask |
5 l |
| Evaporating speed (H2O) |
>3 l/h |
| Condenser surface |
0,57 m2 |
| Condenser pipe |
Vertical main condenser + vice condenser |
| Motor power |
180 W |
| Range rotation speed |
3÷110 rpm (digital display) |
| Bath power |
3 kW |
| Reachable vacuum rate |
<133 Pa (1,33 mbar, 1 Torr) |
| Static temperature control Range & Wave |
Water: RT ÷ +99°C
Oil: RT ÷ +180°C
(±0.2°C) |
| Power |
220 VF / 50 Hz AC motor |
| Glass material |
GG-17 (3.3 HIGH BOROSILICATE GLASS) |
| PTFE Sealing |
Standard |
| PTFE Dump valve |
Standard |
| Vacuum meter |
Standard |
| Heating bath |
Stainless steel |
