Programmable Multiple control syringe pumps system

Simultaneous control of 8 syringe pumps independently

Innovative centralised system consisting of a digital programmable controller unit with touch screen display that can be remotely connected to 8 syringe pumps operating with completely independent parameter settings.

This solution allows to carry out simultaneous tests with syringe pumps operating with completely independent volumes, speeds, flow rates and experimental conditions controlled by a single central unit.

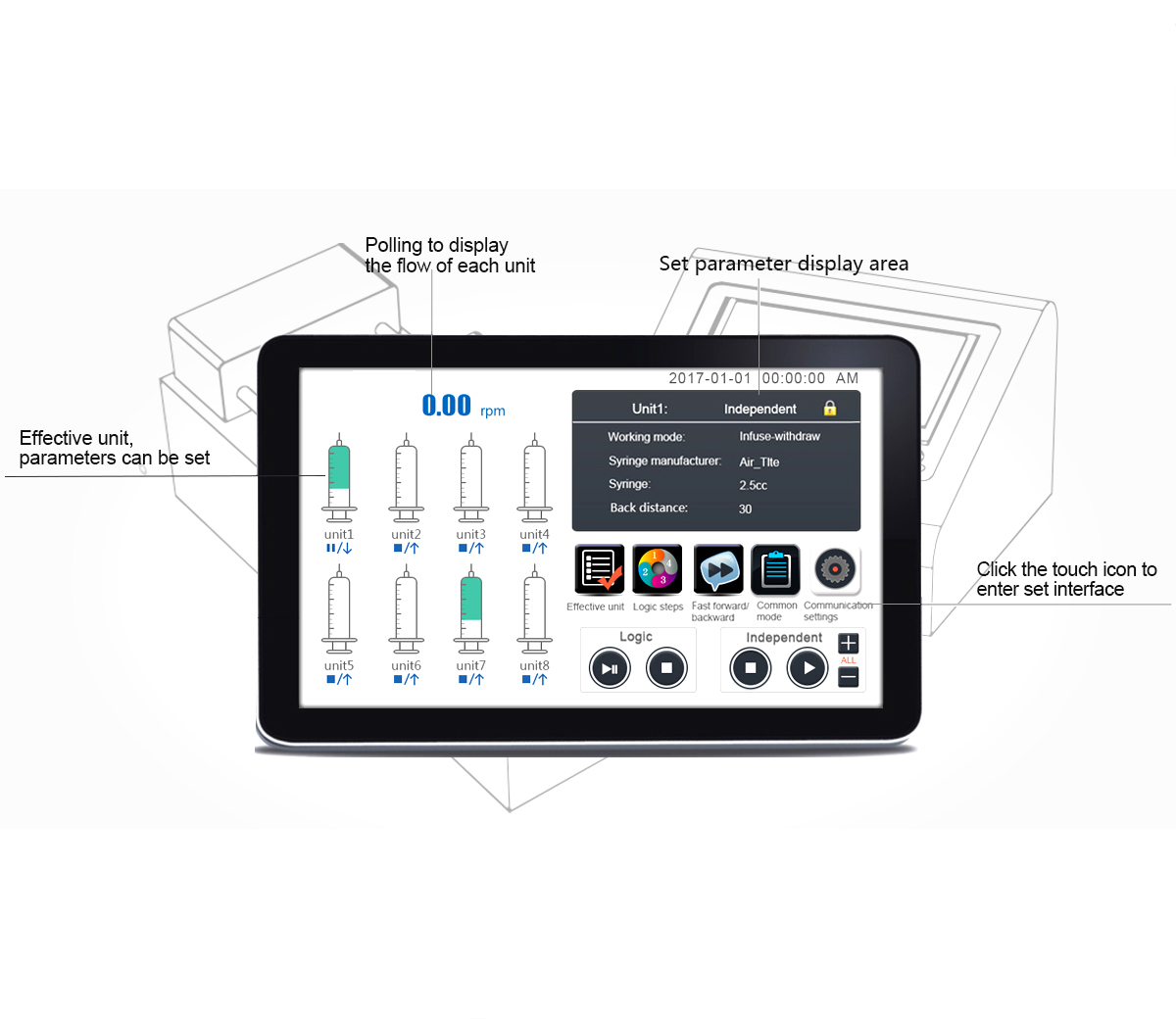

Controller with colour LCD touch screen display, programmable and able to control up to 8 pumps simultaneously, allowing the display of the current working status and setting
Simple and intuitive interface, immediate use even for non-expert operators
Two operating modes; the user can select between independent or logical system operation:
- Independent working mode: each unit working independently, can infuse or withdraw with different speed in same time or different time
- Logic working mode: each unit working with time relationship, with different proportion infuse or withdraw
Users can choose each unit to be independent or logic working mode
Intelligent automatic calibration: ensures high accuracy performance even for microvolumes
On Line Micro" adjustment function to adjust the volume of each individual unit, minimising margins of error
Real-time monitoring, with animated display of current and set data
The controller can receive alarm signals and interact with each individual unit simultaneously
Test distance selection, eliminates bubbles in the syringe and optimises volume accuracy

Technical specifications

Working mode	- Infusion - Withdrawal - Infusion/Withdrawal - Withdrawal/infusion
Connectable Syringe pump units #	1÷8
Syringe range volume	10 µl ÷ 60 ml
Syringe selection	Available of the mainly manifacturer type and syringe from also can define syringe ID in same time
Linear speed range	1 µl/min ÷ 132 mm/min (Flow rate=linear speed * syringe inner cut area)
Min. linear rate	1 µm
Linear force	>16 Kgf
Max. stroke	90 mm
Stroke resolution	0,078 µm per microstep
Accuracy	Stroke >30% of maximum stro Error < +/- 0.5%
Back distance	0,01÷5 mm
Working mode	Indipendent running mode and logic running mode
Stored modes	Can save 10 group working modes
Display	7" LCD color
Display control	Touch screen
Power off memory	Display the previous data parameter after power on again
External control signal	Start/stop signal active switch signal (5V -24 V)
Communication interface	RS232/RS485 Modbus protocol (RTU mode)
Controller power supply	AC100-240V/15W
Syringe pump power supply	DC24V/24W
Working range temperature	0÷40°C
Working range humidity relative	<80% U.R.
IP rate	IP31
Dimensions/weight controller	240×221×111 mm / 2.1 kg
Dimensions/weight syringe pump	257×110×131 mm / 2.6 kg

To order

Code	Description
DK/SPC/CT	MULTIPLE SYRINGE PUMP SYSTEM CONFIGURATION CONTROLLER - PROGRAMMABLE model (up to 50 selectable steps and 5 groups of stored data) with touch screen display (7 inch) - Control system to simultaneously manage up to 8 syringe pumps with independent setting of test parameters

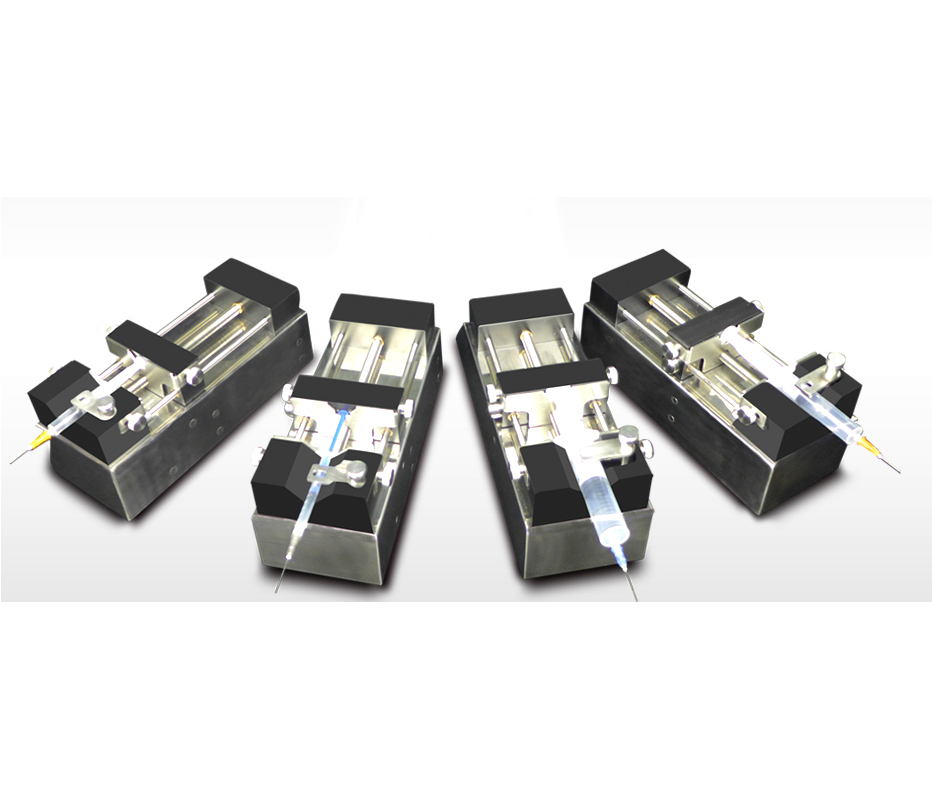

DK/000/SY	SYRINGE PUMP - Syringe volume range 10 µl ÷ 60 ml / Adjustable flow rate range 0.001 ul ÷ 127 ml/min to be configured with controller cod. DK/SPM/CT (up to 8 units simultaneously)
