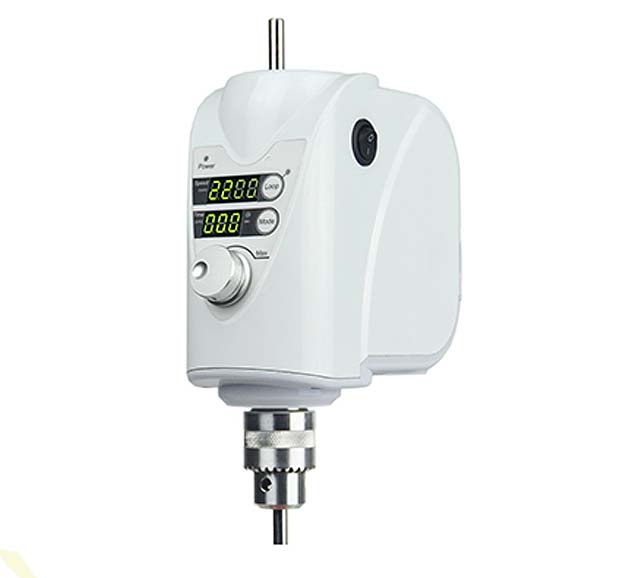

Overhead stirrer 2.200 rpm/40 l

Complete configuration of support stand and 4 stirring rods

Digital overhead stirrer is suitable for middle and high viscosity liquid or solid-liquid mixture.

It is mainly used in chemical synthesis, pharmaceutical, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology and so on.

Complete supply of four stirring rods

The instrument is supplied in the complete configuration of stand and support clamp and 4 stirring rods of different geometry

Code	Description
MB/014/004	Straight type 2 blades Ø 60 mm / Ø_rod 8 mm
MB/014/005	Centrifugal type 2 blades Ø 90 mm / Ø_rod 8 mm
MB/014/006	Propeller type 4 blades Ø 50 mm / Ø_rod 8 mm
MB/014/007	Fan type plate 68 mm / Ø_rod 8 mm

Features

Anti-spill samples, smooth start, effectively prevent spilling
LED with backlit displays real-time speed and torque
It is convenient and accurate for readings, easy to operate
Precise control speed
Control accuracy is±3rpm
Accurately display the actual speed actual value / set value
Constant speed
Torque can be adjusted automatically according to the change of sample viscosity to keep the set speed
Full explosion-proof equipment
Explosion-proof DC brushless motor to ensure lab safe
Closed shell to prevent liquid from entering the machine interior for corrosion circuit, ensure safe operation
Long time continuous and stable operation
Overload protection and motor protection
When overload, short circuit and abnormal speed occur, it will cut off the circuit and alarm automatically to ensure safe running and lab safety
Clockwise & counterclockwise stirring exchange mode
Stirring effect is better

Technical specifications

Code	MB/014/003
Max stirring capacity (H₂O)	40 l
Range stirring speed	50÷2.200 rpm
Stirring speed accuracy	±3 rpm
Resolution	±1 rpm
Timer	30 s ÷ 999 min
Max. Torque	60 N.cm
Max. Viscosity	50.000 mPas
Drill Chuck Clamping Diameter Range	0.5÷10 mm
RS232 Connector	yes
Voltage	VD 24V, 50/60Hz
Power	130 W
Dimensions (WxDxH)	83 x 220 x 186 mm
Net Weight	2.8 kgs
