Laboratory Colorimeter
New measuring instrument designed for the laboratory
Laboratory Colorimeter
New measuring instrument designed for the laboratory, with an extremely high price/performance ratio.

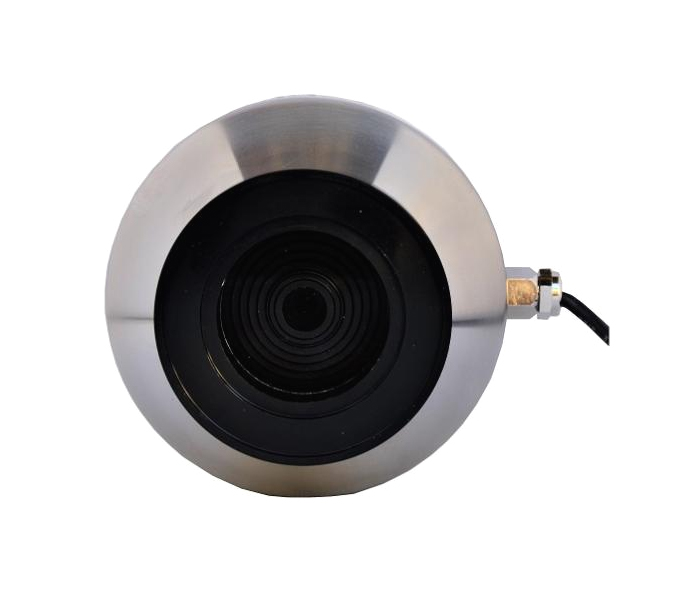

The optical glass Cup included in the kit makes the colorimeter CLM-196 ideal for the measurement of the color of dust and opaque liquids, with a resolution 60 times higher than that of the human eye.
In accordance with the characteristics and performance guaranteed by all colorimeters of the CLM line, the measurement geometry (45 ° c:0 °) and the high uniformity of illumination of the integrated LEDs ensure long-term stability, with consequent minimization of the user's calibration.
The tool interfaces through the USB port to a normal PC with Microsoft Windows operating system.
Features
- Compact with stainless steel body for laboratory
- 60x more accurate than the human eye
- Ideal for powders and opaque liquids
- Application software included with freeware license
Applciations
 |
Food & Beverage |
 |
Cosmetics |
 |
Paints |
 |
Analysis Laboratories |
 |
Chemical |
 |
Pharmaceutical |

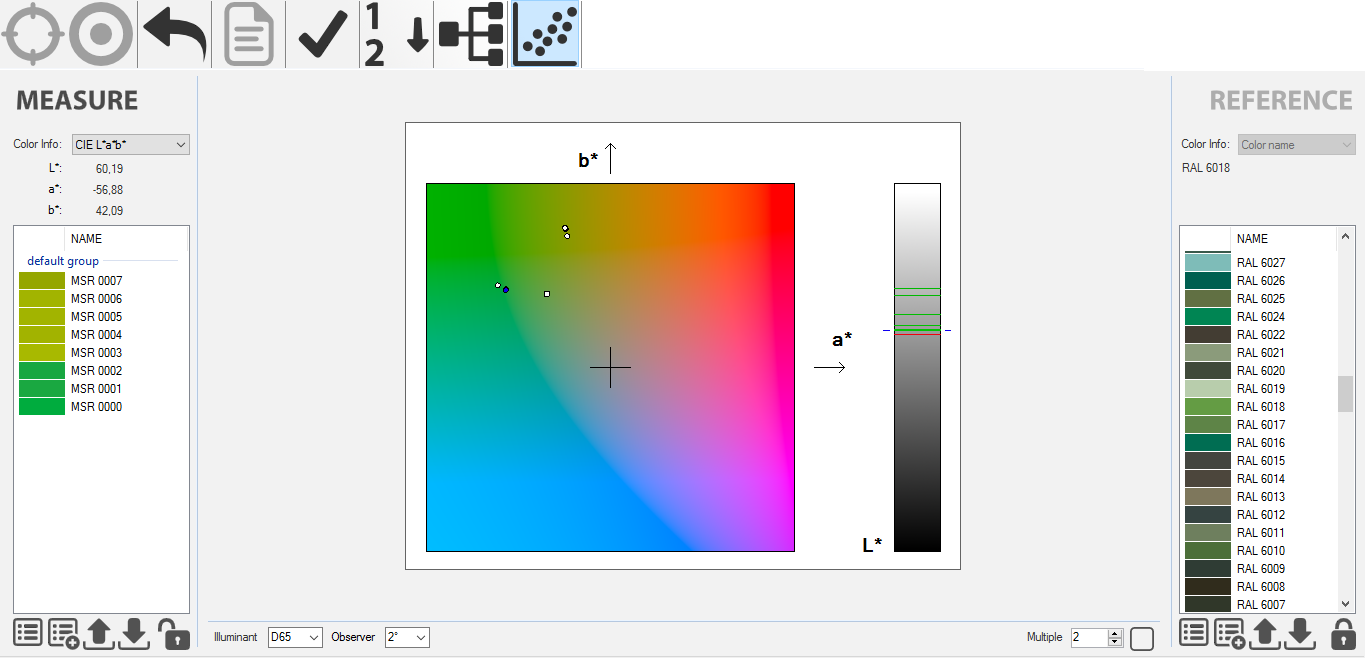

After measuring the sample of interest you can use the software available with freeware license, to perform the following analyses:
- Check: Analysis of color differences with respect to a reference, to determine whether the sample is within the limits of acceptance imposed;
- Classify: Classification of the samples of a set for the division by homogeneous color groups;
- Match: Search for the best match of the sample color in a basic color library to reproduce the measured color.
- Standard sample Databases (RAL, Pantone, etc.) are already included in the software. The user can create custom databases according to their application, even with the support of productor specialist on request. The results of the measurements are exportable in size. PDF or. XML for further analysis.
Additional optional services are available such as: training sessions, check and Recalibration tool, extended warranty, software customizations...
|
Technical specifications
|
|
|
Color sensor
|
Spectral curves according to CIE 1931 (DIN ISO 13655 and DIN 5033)
|
|
Lighting
|
Integrated LEDs
|
|
Target type
|
Reflective (opaque or glossy)
|
|
Working distance
|
In contact
|
|
Geometria di misura
|
Measurement geometry
|
|
Repeatability
|
0.03 de * AB typical (30 sizes every 5s on white reference)
|
|
Lightings
|
D65, D55, D50, A, C, FL2, FL7, FL11
|
|
Observers
|
CIE-1931 2° / CIE-1964 10°
|
|
Measuring area
|
Æ 10mm
|
|
Color coordinates
|
CIE-XYZ, CIE-xyY, CIE-L*a*b*, CIE-L*u*v*, CIE-L*c*h*, sRGB
|
|
Capture Mode
|
Software command. Single or multiple measurement.
|
|
Size and weight
|
74 x Ø 100mm - 925g
|
|
Power
|
Powered by USB
|
|
Accessories
|
Glass for optical specimen holder (first unit included)
|
