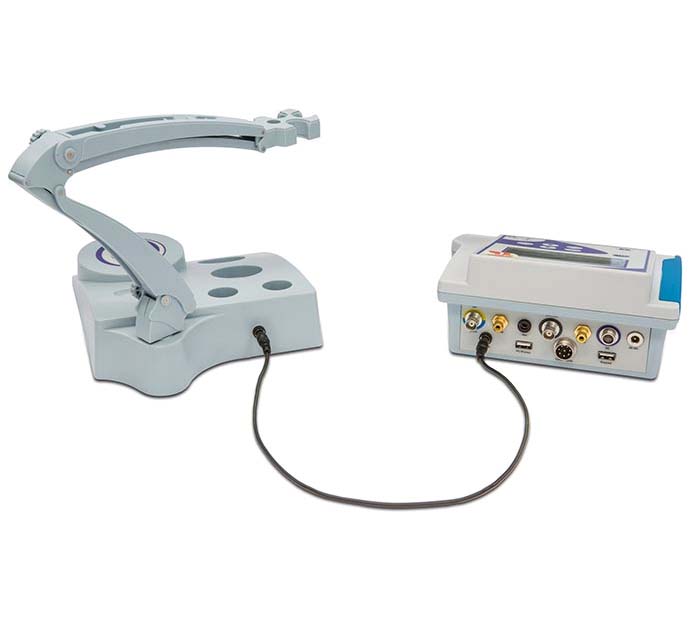

Benchtop pH-meter pH 80
pH meter benchtop digital microprocessor, resolution ± 0.1 / 0.01 / 0.001 pH
pH meter benchtop digital microprocessor, resolution ± 0.1 / 0.01 / 0.001 pH .
- Large graphic colour backlit display
- Manual or automatic temperature compensation with probe NT 55
- Function Data Logger manual and automatic
- Memory / recall up to 1000 data with date / time according to GLP
- Automatic calibration 1 to 5 points for pH according to GLP with date and time
- Buffers selectable NIST, US, DIN or user definable (20 values)
- Viewing on the display of buffers used for calibration, the electrode status. Intuitive management parameters through icons
- Multilanguage menu including Italian
- Company data entry, operator's name and the name of the sample via external keyboard (optional)
- Setting functions of alarms, "Fixed-reading" and "Stability" recalibration alarm, messages of self-diagnosis
- 2 USB outputs for connecting external keyboard and printer or PC
- Magnetic stirrer integrated but also be positioned at a distance of 50 cm with independent control of the speed of agitation
- Keyboard splash-proof IP54,3 years warranty on the electronics
Features
A group of European experts in electrochemistry and a famous Asian producer have developed this new line of bench top meters, finding the right balance between the design and easy to use.
The large color display easy on to read shows all information that you need about measurement, buffers used for calibration, electrode’s life, GLP information and instrument’s memory.
Anyone can use this meter with its plain language screen prompts.
Multilanguage interface that support English, Spanish, French, German, Italian… up 8 languages. Easy to learn.
Complete English instruction manual available on line with press only one key.
Up to 5 point pH calibration with automatic recognition for USA/NIST/DIN and User buffers.
Icon support all calibration editing function with advanced electrode diagnostics. Easy to calibrate.
KIT/versions available
| Code |
Description |
| XS/50001402 |
COMPLETE KIT. pH meter complete glass electrode XS Standard S7, S7 cable / BNC, temperature probe NT 55, support holders, magnetic stirrer with adjustable speed , coloured pH buffers, glasses for calibration with stirring bars, software to download of the data and power supply. |
| XS/50001422 |
Basic KIT. pH meter complete glass electrode XS Standard S7, S7 cable / BNC, temperature probe NT 55, support holders, coloured pH buffers, glasses for calibration with stirring bars, software to download of the data and power supply. (without magnetic stirrer) |
| XS/50001412 |
KIT without electrode. pH meter with S7 cable / BNC, temperature probe NT 55, support holders, magnetic stirrer with adjustable speed , coloured pH buffers, glasses for calibration with stirring bars, software to download of the data and power supply. (without glass electrode XS Standard S7) |
| XS/50001432 |
Basic KIT without electrode. pH meter with S7 cable / BNC, temperature probe NT 55, support holders, coloured pH buffers, glasses for calibration with stirring bars, software to download of the data and power supply. (without glass electrode XS Standard S7. without magnetic stirrer) |
Technical specifications
pH measuring range
| pH measuring range |
-2÷20 pH |
| Resolution |
0.1 / 0.01 / 0.001 pH |
| Relative accuracy |
±0,002 |
| Points of calibration |
1÷5 |
| Buffer recognized |
USA, NIST, DIN, 5 USER |
| Indication of calibration points |
YES |
| GLP Calibration |
YES with data and time |
| Indication of Slope and Offset |
YES with data and time |
| Indication electrode condition |
YES with icon |
| CAL DUE with allarm |
YES |
| Criteria of measurement stability |
Low-Medium-High |
| Allarm value |
MIN - MAX |
| mV (redox) measuring range |
± 2000 |
| Resolution |
0.1 / 1 |
| Temperature measuring range |
-20…120°C |
| Resolution/ Accuracy |
0,1/± 0,2°C |
| Unit |
°C /°F |
| Temperature compensation |
Manuale o automatica 0…100°C (NTC 30KΩ) |
| Temperature Calibration |
YES |
| System GLP |
YES |
| Memory |
MAN/AUTO 1000 date with data and time |
| Display |
Dot matrix multicolors with icons, digital and analogic |
| Inputs |
BNC, Cinch/RCA (ATC), USB for printer or PC, USB for external keyboard |
| Languages |
8 languages |
| User manual |
YES on line |
| Magnetical stirrer |
Available in the Kit versions XS/50001402 e XS/50001412 |
| Speed controll stirrer |
0...3000 rpm |
| IP Protection |
IP 54 |
| Power supply |
AC/DC adapter 9 V / 300 mA |
| Dimensions |
360 x 220 x 100 mm |
| Weight |
1,25 kg |
