Benchtop pH/mV Meter with 0.01 pH Resolution
Large, easy-to-read LCD that displays pH or mV and temperature simultaneously
HN/002211-02 - Benchtop pH/mV Meter with 0.01 Resolution
The HN/002211-02 is a basic, affordable pH/mV benchtop meter that features automatic calibration to 1 or 2 points with a choice of 5 preprogrammed buffers.
All readings are automatically compensated for temperature variations from the supplied thermistor probe
The meter has a large, easy-to-read LCD that displays pH or mV and temperature simultaneously.
The HN/002211-02 is supplied complete with a pH electrode, temperature probe, calibration buffers, reference refill electrolyte, cleaning solutions, and a probe holder.

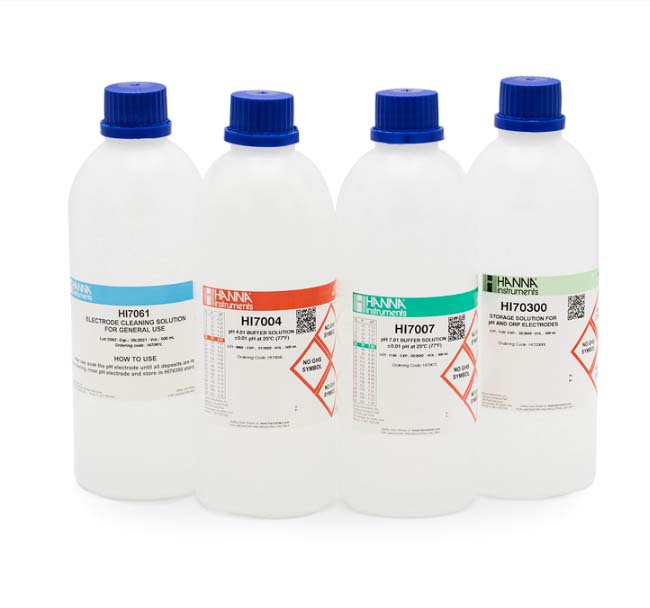

Save on calibration solutions when you bundle!
- Large, Clear Display
- Universal BNC Connection
- Built-In Solution Holders
Details
The HN/002211-02 is a basic affordable pH/mV benchtop meter.
Operation is simplified to calibration, mode selection (pH or mV), and a last stored reading feature.
The HN/002211-02 has a selection to choose between pH and mV modes.
The mV mode is used with an optional ORP electrode that is used to check the oxidation or reduction potentials of a solution.
HN Series offers a variety of ORP electrodes from glass to PEI plastic body styles.
The mV mode of the HN/002211-02 is also useful in checking the offset and slope of the pH electrode.
Understanding the offset and slope characteristic is helpful in knowing if the probe is functioning correctly.
The HN/002211-02 has a separate inputs for a BNC pH electrode and thermistor temperature probe.
The BNC connector is a universal connector that is commonly available and allows the user to select from a wide variety of pH and ORP electrodes for their particular application.
The separate temperature probe provides for a high 0.5°C accuracy measurement for precise temperature compensation.
Features at-a-glance
Simple User Interface
- Operation is simple with limited features that only require the use of a couple of buttons. Readings are easy to view on the large, clear display
One or Two-Point Calibration
- Automatic calibration can be performed at 1 or 2 points using the 5 preprogrammed buffers (4.01, 6.86, 7.01, 9.18, and 10.01)
HN/01131B pH Electrode
- The HN/002211-02 is supplied with the HN/01131B glass body, double junction, refillable pH electrode with an indicating sensor made of High Temperature (HT) glass
- The double junction and HT glass design allows the HN/01131B to be used in a wide variety of application from samples with metals and Tris buffer to samples at elevated temperatures
Temperature Compensation
- The HN/002211-02 offers automatic or manual temperature compensation of pH measurements over a wide range from -9.9 to 120.0°C
mV mode
- TheHN/002211-02 has a mV mode that can be used with a wide variety of ORP electrodes
- The mV mode is also useful in checking the offset and slope of the pH electrode
- Understanding the offset and slope characteristic is helpful in knowing if the probe is functioning correctly
Stability Indicator
- The HN/002211-02 features a stability indicator
- An hourglass appears on the display when there is instability in the reading
- The hourglass disappears once the reading has stabilized
- At that time a reading should be taken or stored
Measurement Recall
- The HN/002211-02 has a “MEM” button to store a reading
- The reading can be recalled at anytime by pressing the memory recall “MR” button
pH Specifications
| pH Range |
-2.00 to 16.00 pH |
| pH Resolution |
0.01 pH |
| pH Accuracy (@25ºC/77ºF) |
±0.01 pH |
| pH Calibration |
automatic, one or two-point with five memorized buffer values (pH 4.01, 6.86, 7.01, 9.18, 10.01) |
| pH Temperature Compensation |
automatic or manual from -9.9 to 120.0°C |
| mV Range |
±399.9 mV ; ±2000 mV |
| mV Resolution |
0.1 mV; 1 mV |
| mV Accuracy |
±0.2 mV (±399.9 mV); ±1 mV (±2000 mV) |
Temperature Specifications
| Temperature Range |
-9.9 to 120.0°C (14.2 to 248.0°F) |
| Temperature Accuracy |
±0.5 °C (0.0 - 100.0 °C); ±1 °C (outside) |
| Temperature Resolution |
0.1 °C |
Additional Specifications
| Electrode/Probe |
glass body pH electrode with BNC connector |
| Temperature Probe |
stainless steel temperature probe |
| Environment |
0 to 50°C (32 to 122°F; 273 to 323 K), RH max 95% non-condensing |
| Input Impedance |
10¹² Ohms |
| Power Supply |
12 VDC adapter (included) |
| Dimensions |
240 x 182 x 74mm (9.4 x 7.1 x 2.9”) |
| Ordering Information |

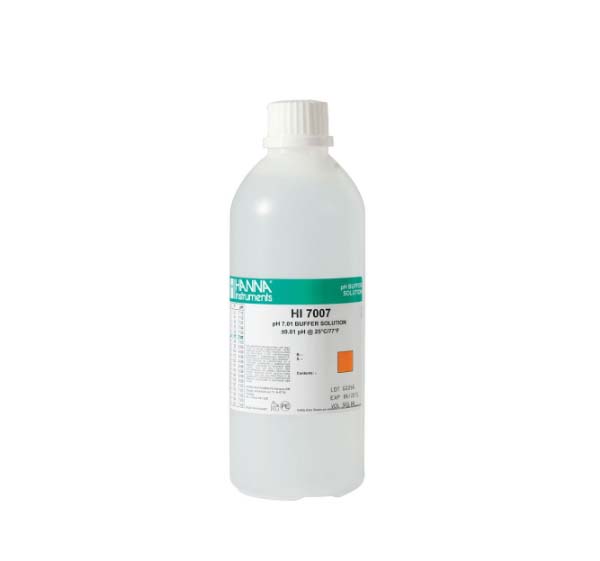

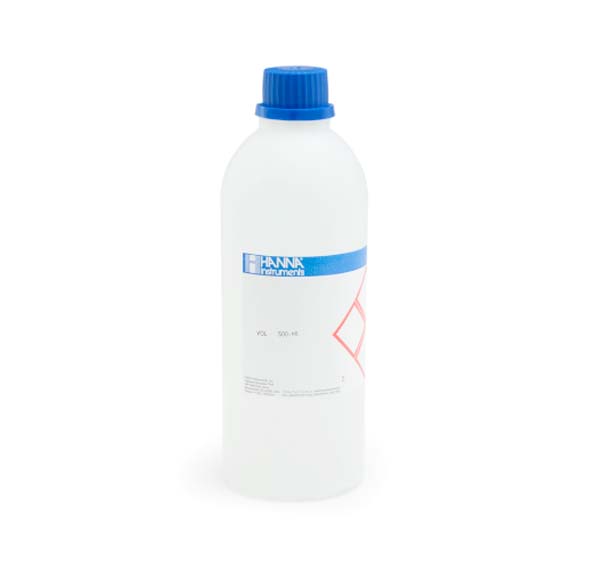

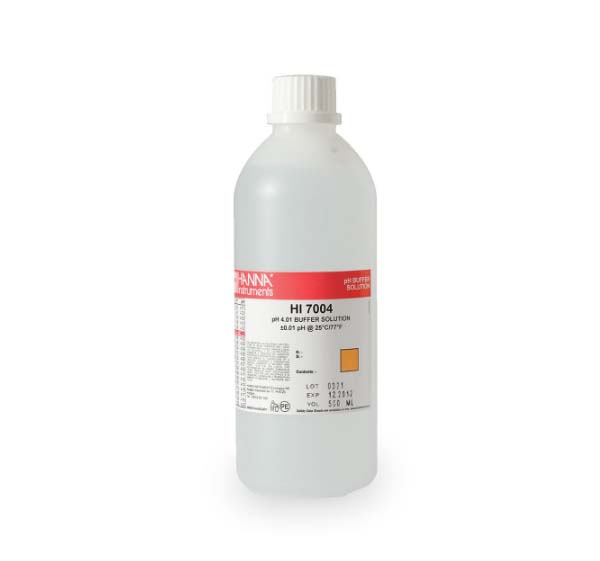

HN/002211 is supplied with HN/01131B pH electrode, HN/007662 temperature probe, HN/076404N electrode holder, HN/070004 pH 4.01 buffer solution sachet, HN/070007 pH 7.01 buffer solution sachet, HN/007082 electrolyte solution, HN/700601 cleaning solution sachet, 12 VDC adapter, and instructions. |
