Autoclaves IC-D "Pink" Series Class B

Digital benchtop steam sterilizers with Class B pre & post vacuum type

IC-D line autoclaves, Green series.

Identical models to those of the standard IC-D line, but with green structure

Class B digital autoclaves available in 4 different capacities with pre & post vacuum functions.

Equipped with electronic door safety lock.an integrated printer is available as an optional accessory.models of excellent quality, robust and accurate with simple and fast use.

Overview

  • Benchtop steam sterilizers with Class B pre & post vacuum type, complies with the European standard EN13060
  • These autoclaves require minimal bench space making it an idea sterilization solution for small clinic such as dental, veterinary, beauty, podiatry and microbiology requirement

Excellent Performance

  • Full automatic table top autoclave with pre-set programs
  • Complies with European standard EN13060
  • Working very quietly
  • In built independent rapid steam generator ensures quick sterilization cycles
  • Rapid post sterilization vacuum drying
  • With one flash water tank and used one water tank
  • LCD screen displaying time, temperature and pressure, process alert and instrument conditions
  • User friendly interface
  • Self-initialization when work in different altitude
  • Multilanguage menu: Chinese, English, Spanish, German, Lithuanian, Polish, French, Czech, Hungarian, Romanian, Dutch, Latvian, Italian, Portuguese, Russian, Coratian

Safety and Monitoring

  • Double safety protection system prevents the cycle from starting if the door is not correctly locked
  • This system also prevents the door from opening if the pressure inside the chamber is not equal to atmospheric pressure outside the chamber
  • Pressure safety valve prevents over pressure in the chamber and steam generator
  • The power is automatically cut if a short circuit or electrical fault occurs
  • Able to detect and identify the exact cause of any problem, and to issue a specific error code to the operator
  • Water level main switch in the main tank controlling the min and max water level
  • Automatic warning for maintenance

Documentation

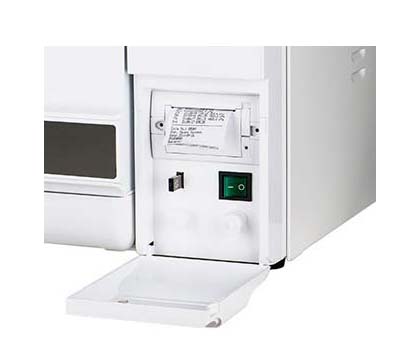

  • Printer (option): an internal printer is optional for all autoclaves
  • USB port : it is used for connecting a USB sticker, all sterilization data are automatically written in the USB stick, and can be ready directly in any PC and stored electronically
  • Internal Memory: the last 20 cycles can be automatically stored in the autoclave system, which can be printed out at any time

Technical specifications

Code IC/D/PIN208 IC/D/PIN212 IC/D/PIN218 IC/D/PIN223
Model Number STE-8-D STE-12-D STE-18-D STE-23-D
Chamber Dimension Ø170x320 mm Ø200x360 mm Ø247x350 mm Ø247x450 mm
Chamber Volume 8 L 12 L 18 L 23 L

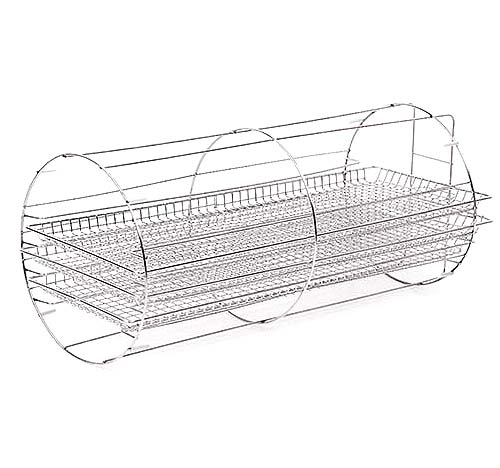

Number of Trays 2/ Max. 3 2/ Max. 3 3/ Max. 4 3/ Max. 4
Material of Trays Aluminium Stainless Steel Aluminium Aluminium
Size of Trays 130x265 mm 156x295 mm 192x285 mm 192x380 mm
Voltage, Freq. 220/110V, 50/60Hz 220/110V, 50/60Hz 220/110v, 50/60Hz 220/110v, 50/60Hz
Power 2000 w 2000 w 2000 w 2200 w
Overall Dimension (WxHxD) 420x370x525 mm 420x370x595 mm 490x455x600 mm 490x455x690 mm
Weight 37 kgs 40 kgs 47 kgs 53 kgs

Cycles

Program Temp. [·C] Pressure [Mpa] Sterilization time [min.]
SOLID 134 210 4
  121 110 20
LIQUID 134 210 10
  121 110 30
WRAPPED 134 210 10
  121 110 30
TEXTILE 134 210 10
  121 110 30
PRION 134 210 18
DRYING - - -
B&D TEST 134 210 3.5
HELIX TEST 134 210 3.5
VACUUM TEST - - -

Standards



  • 93/42/EEC Directive on Medical Devices
  • 97/23/EEC Directive on Pressure Equipment
  • EN 13060 Small Steam Sterilizers
  • EN 61326, EN 61000 Electromagnetic Compatibility
  • EN 61010-1, UL 61010-1Safety requirements
  • EN 61010-2-040, IEC 61010-2-040. Specific requirements for steam sterilizers used for treatment of medical materials
