Autoclave 18 l IC-E Series Class N

Two program 121°C and 134 °C included

Autoclave, capacity 18 l, Class N.

It is a semi-automatic “Class N” autoclave worked without steam generator, two program 121°C and 134 °C included, with LED display, an economic idea for the fields of podiatry or clinic which require low expense.

Overview

It is a semi-automatic “Class N” automatic autoclaves worked without steam generator, with two program 121°C and 134 °C included
It does not have water tank, the water has to been feed inside of the chamber before sterilization

Performance

Two program 121°C and 134 °C included

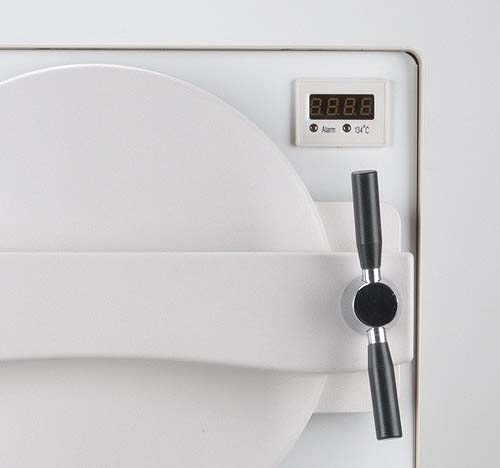

LED displaying window
The water has to been feed inside of the chamber

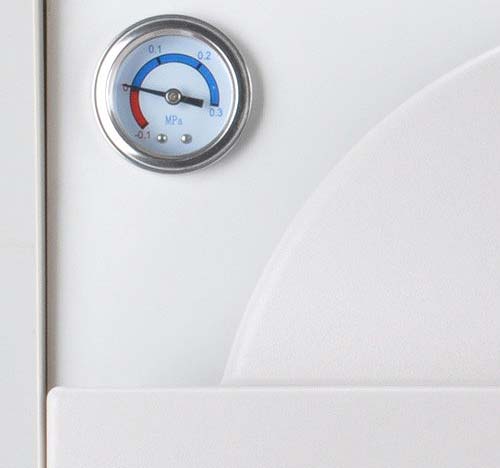

Pressure gauge show the pressure all the time

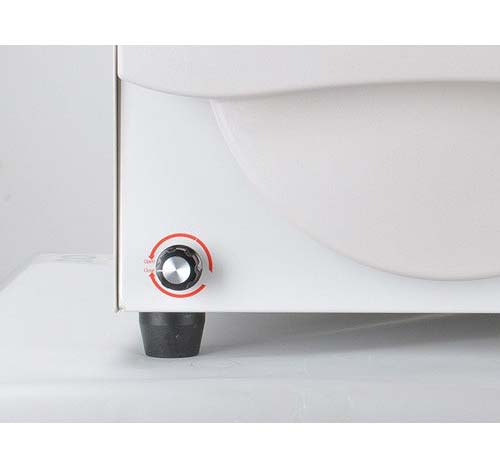

Water and pressure is drained by manual

Safety and Monitoring

Overheat protection
Pressure safety valve prevents over pressure in the chamber

Technical specifications

Code	IC/E/000018
Chamber Dimension	250x350 mm
Chamber Volume	18 L

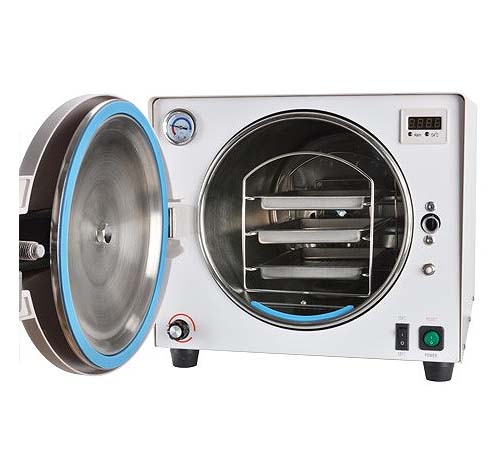

Number of Trays	3
Size of Trays	260x180 mm
Voltage, Freq.	220/110V, 50/60Hz
Power	900 w
Overall Dimension (WxHxD)	400x350x550 mm
Weight	27 kgs

Cycles

Temp. [·C]	Pressure [Mpa]	Sterilization time [min.]
134	210	6
121	110	25

Standards

93/42/EEC Directive on Medical Devices
97/23/EEC Directive on Pressure Equipment
EN 13060 Small Steam Sterilizers
EN 61326, EN 61000 Electromagnetic Compatibility
EN 61010-1, UL 61010-1Safety requirements
EN 61010-2-040, IEC 61010-2-040. Specific requirements for steam sterilizers used for treatment of medical materials
