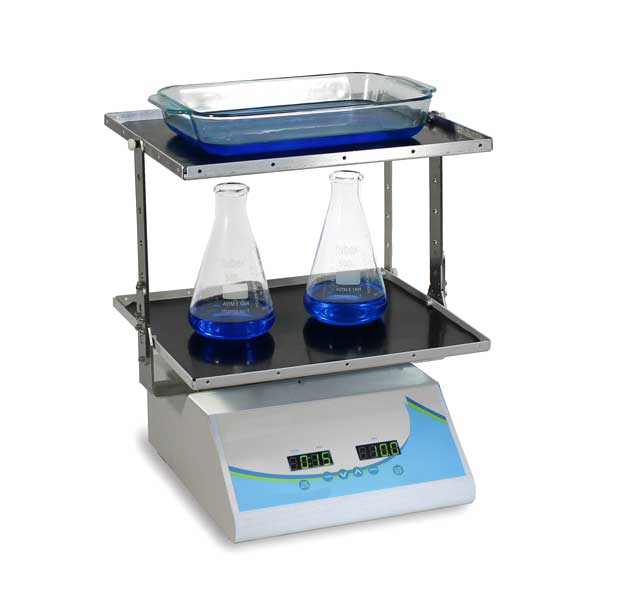

4-platform oscillating agitator
Equipped with special attachment system for stacking up to 4 platforms
Innovative agitator with a large capacity but extremely compact dimensions thanks to the vertical development of a support system that can accommodate up to 4 platforms.
- The configuration of the platforms is user-adjustable
- Oscillation speed and tilt angle are adjustable
- Ideal tool for working in even difficult conditions such as cold stores and incubators
- 4 large platforms are included as standard
A unique multi-level clamping system allows the load capacity to be optimised by stacking up to 4 platforms.
Unlike traditional single-platform models, this system provides four times the load capacity with the same amount of bench space.
Ideal for routine gel blotting, washing and staining operations of large quantities of samples, this multiple oscillator can be installed with all four platforms, while for protocols requiring taller vessels, the quantity and distance between the various platforms can be easily adjusted to provide a maximum space of 21 cm.
These features make this tool extremely versatile and innovative, with digital speed and timer control as well as user-adjustable tilt angle.
Its small footprint and unparalleled load capacity make it an ideal tool for all protocols that require gentle or more vigorous oscillations.
Technical Specifications
| Speed range | 5÷80 rpm |
| Tilt angle | 6÷22° |
| Platforms size | 40,5×30 cm |
| Load capacity | 5.45 kg total |
| Dimensions | 40,6×34,20×20,3 cm |
| Operating temperature | 0°C ÷ +50°C |
| Weight | 12 kg |
| Electrical parameters | 230 V / 50-60 Hz |
To order
| Code | Description |
| BN/BR/054/004/E | Digital oscillating shaker, 4-platform multiple |
