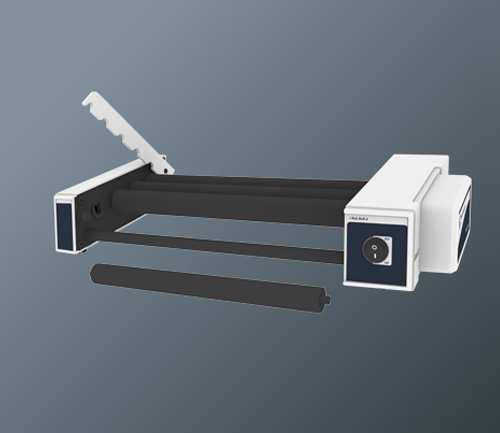

4 Tube roller

Four tube roller with smooth rocking and rolling action at fixed speed

4 tube roller with two types of simultaneous motion, smooth rocking and rolling action.

Features

  • Gentle rocking and rolling motion for optimum mixing
  • Fixed speed of 30 rpm with speed accuracy of +/-2 rpm
  • Continuos/infinite mode of operation
  • Tilt angle of +/- 3°
  • Tool free removal/installation of rollers for replacement and cleaning
  • Adjustable rollers spacing to hold different diameter tubes
  • Suitable for mixing of blood sample and viscous substances
  • Small footprint saving laboratory space
  • Works with 80% humidity and 40°C
  • Protection class of IP21
  • Robust construction for stable operation
 Fixed speed of 30 RPM with speed accuracy of +/-2 RPM
 Tool free removal / installation of rollers for replacement and cleaning.
 Noiseless Operation

Technical specifications

CodeNT/RNR/004
Rollers number4
Motor typeAC Synchronous
SpeedFixed speed - 30 rpm
Run timeContinuos/Infinite
Tilt angle+/- 3°
Speed accuracy+/- 2 rpm
Noise levelNoiseless operation
Load capacity1,5 kg
Roller sizeØ 30 mm × lenght 330 mm
Protection classIP21
Dimensions (W×D×H)475×210×80 mm
Weight2 kg
