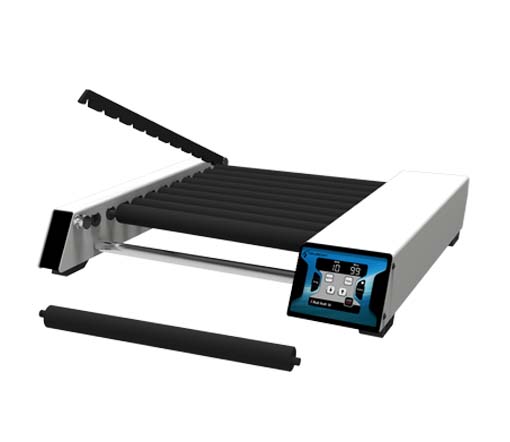

10 TUBE ROLLER DIGITAL

Next gen digital tube roller with microprocessor control

Digital 10 tube roller with microprocessor & brushless motor; the next gen digital tube roller with microprocessor control for optimum mixing of blood & viscous samples.

Features

  • Brushless DC motor for maintenance free long life and quiet operation
  • Speed setting from 10 to 80 rpm & timer from 1 min to 99 min & infinite mode
  • Adjustable rollers spacing to hold different diameter tubes
  • Removable rollers for easy cleaning in case of sample spillage
  • Programming features: user can save and run up to 9 user defined programs (protocols)
  • Microprocessor controller for accurate speed under variable load
  • Unique user programmable feature - saves up to 9 programs
  • Digital display with soft touch keypad
  • Programmable "pulse" mode feature with "run-pause-run" motion
  • User can set "pulse" time from 30 to 99 seconds
  • Stackable design with robust construction
  Brushless DC motor for maintenance free long life and quiet operation
 Removable rollers for easy cleaning in case of sample spillage
  Programmable pulse mode feature with 'Run-Pause-Run' motion
 Digital display with soft touch keypad

Technical specifications

Speed range10÷80 rpm (res. 1 rpm)
Number of rollers10
Motor typeBrushless DC motor
MotionRocking and rolling
Timer range1÷99 mins / infinite mode
Operation typeContinuos and timed operation
Removable rollersYES - tool free removal & fitment
"Pulse" modeYES - run-pause-run
Tilt angle+/- 3°
Protection classIP 21
Load capacity2 kg
Dimensions (W×D×H)502×448×92,5 mm
Power consumption6 W
Weight7,5 kg
