Sonicator 450 W / 10÷300 ml

Complete configuration with anti-noise box, probe Ø 13 mm, software, temperature probe

Ultrasonic Processor Model FS/000450/N

Supplied

  • Ultrasonic disintegrator FS/000450/N

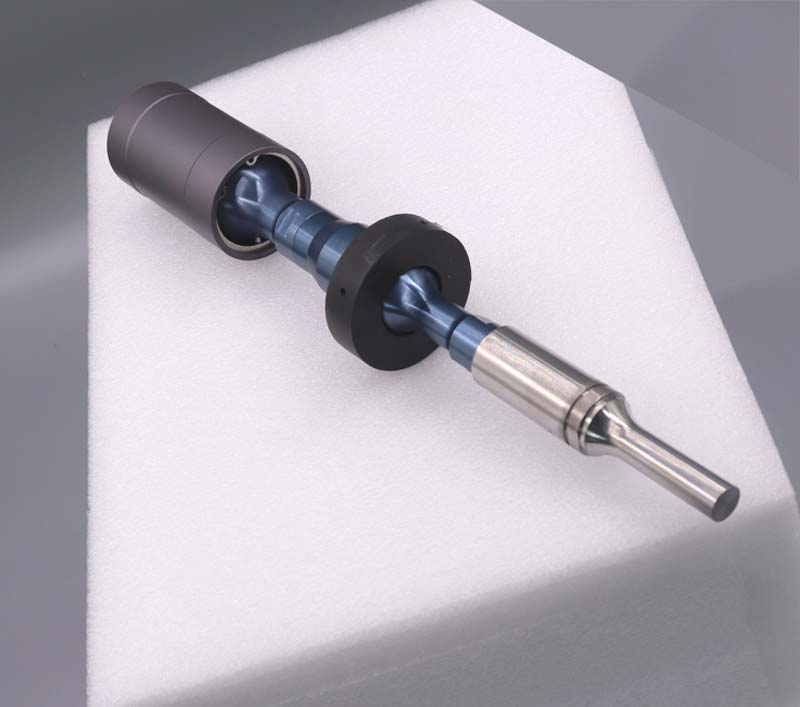

  • Probe Ø 13 mm  (range volume 10÷300 ml)*
  • Noise  insulation box
  • Lift table
  • Temperature probe
  • Software

* Also available Ø 10 (5÷ 250 ml)  and Ø 16 mm  (20 ÷500 ml) optional probes

Major Functions

  • Auto-tuning for convenience of use and optimal processing efficiency
  • 99h total working time controller, 1s – 99h, count-down time display
  • Working time can be displayed as aggregate number
  • On/off impulse timer: make sure to deal with temperature sensitive sample. On and off can be set from 1s to 99min
  • Automatic amplitude compensation to make the amplitude not changed following the carring
  • All the function can be displayed in the large LCD screen , operation easy, Fully microprocessor controlled and completely programmable
  • Configuration : temperature probe , temperature display and protection when the temperature is over limition

Common applications

  • Mixing, blending, emulsifying, and processing solutions
  • Reducing particle size of suspensions
  • Dispersing suspensions
  • Disrupting cells
  • Catalyzing chemical reaction

Technical parameters

  • Model: FS/000450/N
  • Output Power: 450 W
  • Net weight: 4.5 Kg
  • Frequency: 20 KHz
  • Timer: LED 1s – 99 hours adjustable
  • Power adjustable: 0%--100%
  • Impulse : number closed loop, open loop: set: 1s-99 min
  • Piezoelectric frequency energy converter: CV33, Lead zirconate titanate (PZT) pyroelectric ceramics
  • Converter dimensions: Diameter: 63 mm Length:165 mm Weight: 650 g Length of cable: 150 cm
  • Standard probe: titanium alloy material TI-6AL-4V
  • Diameter(probe): 13 mm (can also choose 3/6/8/10/12 mm)
  • Processing volume: 10 ÷300 ml with the standard probe included
  • Total length:139 mm weight: 370 g
  • Temperture sensor:0--300°C
  • Power Supply:220V 50Hz
  • Free accessofies: ABS Plastic soundproof box / A stainless steel lifting platform included
