Refrigerated micro-centrifuge -20°C / 24×1,5/2,0 ml

High Speed refrigerate model, provided with rotor 24 place for microtubes 1,5/2 ml

Micro High Speed refrigerated centrifuge.

  • With FTF true-color LCD widescreen touch monitor featured by intelligent control,touchable/push-botton operation models for simultaneous control
  • Automatically record the operational parameters,can be directly started by RCF
  • Using a brushless motor with high torque and variable frequency which is controlled by an SCM of Microchiip's dsPIC30F series and driven by a special driver module of FAIRCHILD'S FSBB30CH Series to ensure the circuit's reliability
  • Standby and cool-down function to ensure constant refrigeration when the machine is in standby
  • With a dedicated key indicating the centrifugal force which has the inching functiion for momentary centrifugation
  • With a motor gate lock mute mechanical & electrical integration
  • Unique refrigeration system to ensure the temperature at the maximum rotation speed remain below 4℃
  • Able to provide 20 kinds of operating modes for the user to programme and use freely
  • With 10 levels for speed-up and speed-down control,the optimal speed-up and speed-down time is 25 seconds

Technical specifications

Code HR/0T16/0MM
Capacity 24×1.5/2.0 ml
Max speed 16.500 rpm
Max RCF 18.780×g
Rotor 24×1.5/2.0 ml
Accuracy ±50 rpm
Temperature range －20℃÷40℃
AccuracyT ±1℃
Timer  0-99 h  / 59 min
Noise level ≤58 dB
Power AV220V 50Hz

You might also be interested in these items
Centrifuge/Magnetic Stirrer in ONE unit
Microcentrifuge(12.500 rpm) and magnetic stirrer (2.500 rpm)

€ 1,994.04
iva esc.
Details

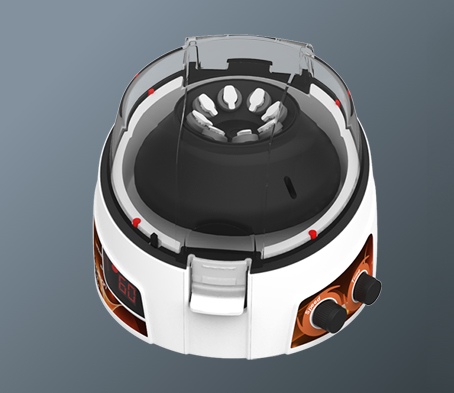

Microcentrifuge 6.000 rpm
