Real-Time" thermal cycler 4 channels 500÷720 nm

Model equipped with two 16-well blocks that work independently

Real-Time PCR System is a portable fluorescence quantitative PCR instrument.

This product adopts four channel and double 16-well blocks, wich can run two different files simultaneously.

The product combines a variety of advanced technologies:

7-inch high definition TFT color touch screen
Win 10 operating system with analysis software
Complete quantitative analysis and printing report without computer
It adopts AM custom-made Peltier, high sensitivity photoelectric detector and side scan technology, to ensure superior performance and stable detection results

Applications

The product can be used for real time detection in pasture, forest farm, breeding farm and Water source.

It is used for rapid diagnosis of disaster and epidemic disease, inspection and quarantine in the field of food safety, and scientific research in biological laboratories.

Features

Four channels and double 16-well blocks design, can run two different programs at the same time
Small size, light weight, easy to carry

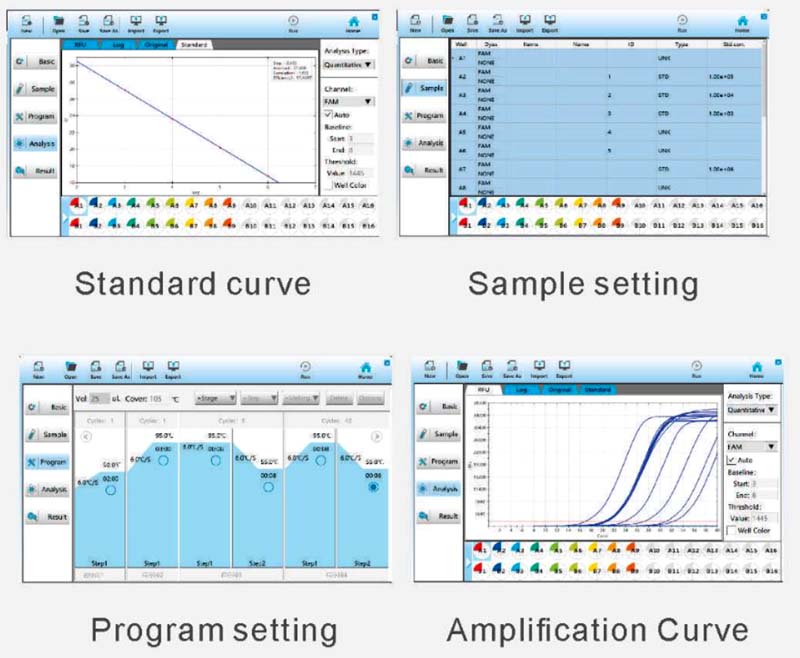

Powerful software analysis function wich can be used for Quantitative Analysis, Melting Curve Analysis, Genotyping, Relative Quantification, etc.
7-inch high definition TFT color touch screen, and embedded win 10 operating system
20G flash memory can save 40.000 experimental data
Printer as an optional wich can print the records directly, no need to connect to computer
Imported 32 bundled optical fibers are used to collect fluorescence from the side to increase the intensity of fluorescence signal and reduce light conduction damage
Black reaction block to avoid background noise
LED light source has the advantage of energy saving, environmental protection long service life and maintenance free
The elctromagnetic lock cover technology prevents the hot lid from accidentally opening
Front shutdown button makes file data more secure
Constant current control circuite maked power output smooth and extends Peltier life, also improves temperature control accuracy
It has the protection functions of over current, over temperature, power-off data self recovery, etc.
Forward and backward air vent design, can be placed side by side, saving laboratory space

Technical specifications

Code	BG/0Q3/204
Sample capacity	30×0.2 ml (2x16 well dual block)
Consumable	Clear 0,2 ml PCR tubes / 8 tube strips
Reaction volume	10÷100 µl
Temperature control technology	MA Customize Peltier allow 1.000.000 cycles
Temperature range	0÷100°C (resolution 0.1°C)
MAX Temperature rate	5°C/s
Temperature fluctuation	+/- 0.1°C
Uniformity	+/- 0.25°C
Accuracy	+/- 0.25°C
Hot lid temperature	30÷115°C (adjustable, default 105°C)
Excitation wavelenght	460÷650 nm
Emission wavelenght	500÷720 nm
Factory calibrated dyes	F1: FAM/SYBR Green I F2: HEX/VIC/JOE/TET F3: ROX/TEXAS-RED F4: Cy/Quasar-670
Excitation	LONG LIFE LED
Detection	High sensitivity photoelectric detector
Dynamic Range	1÷10(10) copies
Sensitivity	1 copy
Feature functions	Absolute/relative quantification, melting curve genotyping
Date export formats	Excel, csv, txt
Printing	Report can be printed (optional USB thermal printer)
Display	7 inch color TFT touch screen 1.280×800 pxs
Communication parts	WIFI/USB 2.0
Dimensions	300×267×198 mm
Net weight	6,7 kg
Power	DC15V / 250 W
