Multiple control system + 4 peristaltic pumps

Compact and versatile structure ideal for centralised control

Centralised control system for 4 peristaltic pumps operating in parallel.

The system is capable of controlling up to 32 units simultaneously
Compact and modern design with small footprint on the workbench
Ideal for applications in protocols requiring multiple dispensing, in the clinical, pharmaceutical chemical, industrial and any research field requiring the dispensing of fluids with high accuracy micro flow rates
The equipment includes a digital controller and configuration unit with 4 peristaltic pumps

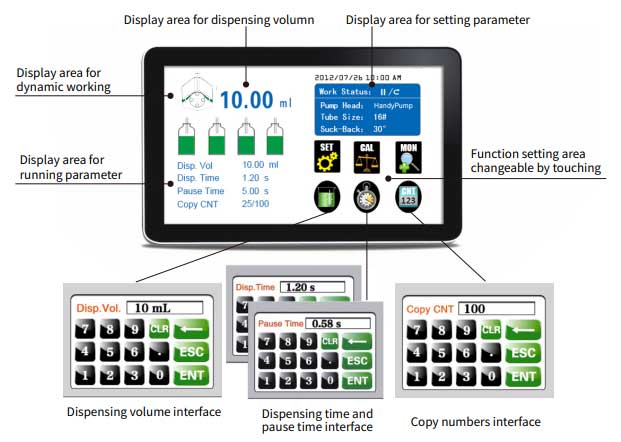

The digital display allows the dispensing volume, stroke parameters, dispensing time and pauses to be set and displayed and allows the status of all connected pumps to be monitored

Technical Specifications

Speed Range	0,1÷300 rpm
Filling volume	0,01÷9999,99 ml
Dispensing time	0,1÷9999,99 s
Interval time	0,1÷9999,99 s
Volume resolution	0,01 ml
Time resolution	0,01 s
Copy numbers	1÷9999 times / 0 repr. unlimited
Filling accuracy	<+/- 0,5%
Filling units	1÷32
Display	4.3" Colour LCD display
Control mode	Touch screen and keypad
Start/Stop direction signal	Passive switch signal, such as foot pedal switch; active switch signal, 5-24 V universal
Output interface	Outpur motor working status
Communication interface	Modbus protocol (RTU mode)
Power supply	AC 100V - 240 V (50÷60 Hz)
Working conditions	T 0÷40°C / U.R. <80%

To order

Code	Description
SHN/300/HP	Complete configuration control + 4 peristaltic pumps
