Mini Dry Bath Incubator with fan

Unique designed, smart and light, suit for various occasions

Mini Dry Bath Incubator with fan for heat dissipation, which makes temperature down much faster than nature cooling

The mini dry bath is a micro-processor controlled heating block with heater  technology.

It adapts onboard use, smart, light and convenient for movement, suit for any kind of occasions.

Features

  • Fan for heat dissipation
  • Unique designed. Smart and light, convenient movement, suit for various occasions
  • LCD simultaneously display setting and actual time and temperature
  • Temperature calibration function
  • Automatic fault detection function with buzzer alarm
  • 24V DC input power, built-in over-temperature protection device
  • Various of blocks for optional choice
  • Convenient for replacement
  • Easy cleaning and disinfection

Technical specifications

Code MB/004/005
Temperature control Range R.T. +5°C ÷ 100°C
Temp. Stability ≤±0.5℃ (100°C)
≤±0.3℃ (40°C)
Block Temp. Uniformity ≤±0.3℃
Temp. Display Accuracy 0.1℃
Heating Speed ≤15min (20℃ to 100℃)
Cooling Speed  fan cooling
Heating cover NO
Time Range 1 sec ÷ 999 sec
or 1 min ÷ 1.000 min
Voltage DC24V adapter
Power 60 W
Dimension (WxDxH) 110x 156×92 mm
Net Weight 1 kg

Aluminium blocks (optional accessories)

Code Description

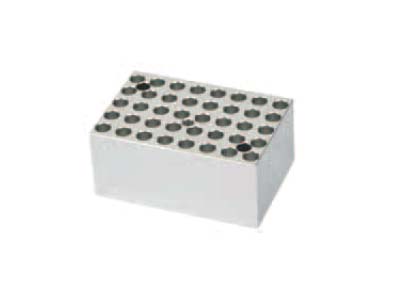

MB/004/008 Block for 0,2 ml microtubes 40 holes Ø 6,1 mm conical bottom

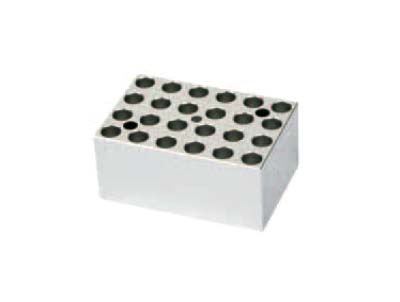

MB/004/009 Block for 0,5 ml microtubes 24 holes Ø 8 mm conical bottom

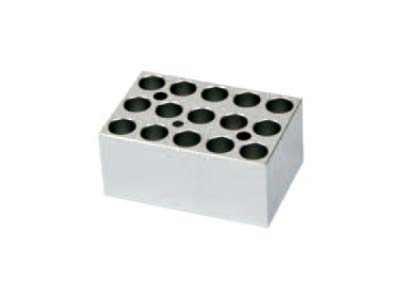

MB/004/010 Block for 1,5 ml microtubes 15 holes Ø 10,8 mm conical bottom

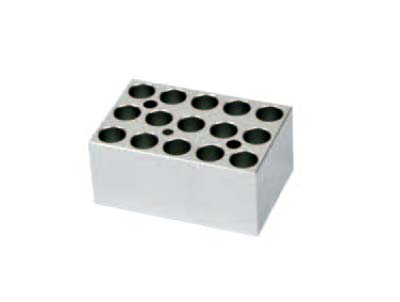

MB/004/011 Block for 2,0 ml microtubes 15 holes Ø 10,8 mm round bottom

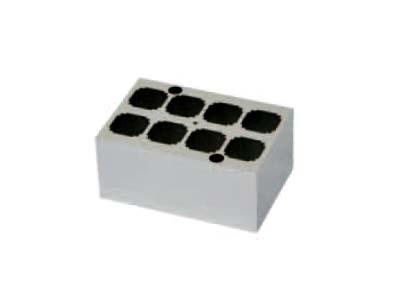

MB/004/012 Block for cuvettes 8 holes 12,5×12,5 mm

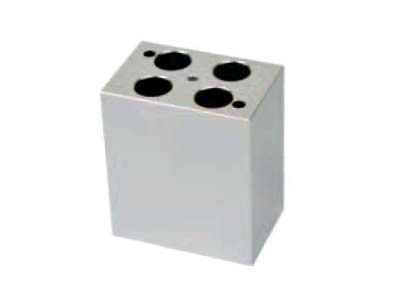

MB/004/013* Block for 15 ml tubes 4 holes Ø 16,9 mm flat bottom

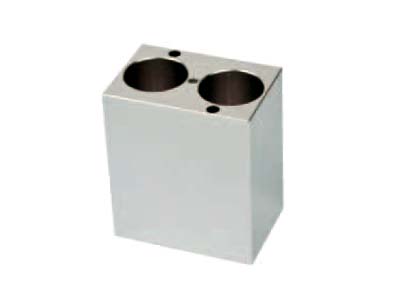

MB/004/014* Block for 50 ml tubes 2 holes Ø 29,2 mm flat bottom

*The MB/004/013 and MB/004/014 block codes, are not standard block; for their height the lid cannot be closed
