LEGATO 110 SYRINGE PUMP
Single syringe programmable touch screen infusion/withdrawal pump
LEGATO™ 110 SYRINGE PUMP
Single syringe programmable touch screen infusion/withdrawal pump.
Single syringe infuse/withdraw with program option for 2 programs.
50 steps each. Accommodates syringes 0.5 µl to 60 ml. User definable flow rates with selectable target volume or time values to control the total infusion volume.
The New Legato 110 is the next generation of syringe pumps, ideal for multi step dosing applications and has multi-mode operation.
The KDS 110 infuse only is the worlds first single syringe infusion only pump with a touch screen interface.
It offers infuse withdraw flow control and programmability for up to two multi-step programs of 50 steps each.
The Legato 110 has a wide flow rate range from 1.26 pl/min to 88.28 ml/min
depending on syringe size. The large touch screen color display allows the user to see all of the pumps operating parameters to ensure proper operation during the experiments.

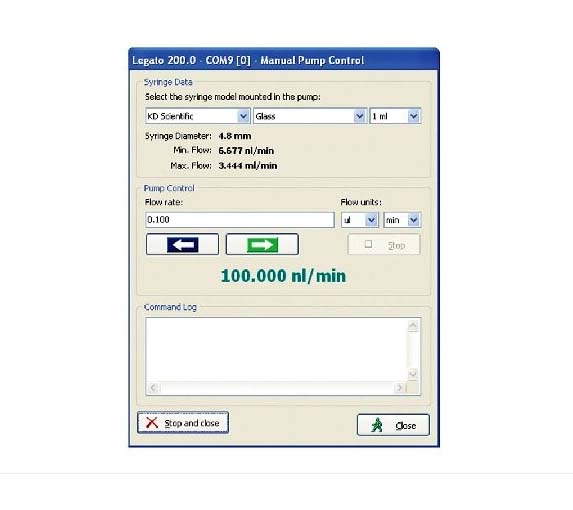

Syringe size and flow rate are easily displayed as well as the volume delivered and the elapsed time. Set up is easy using the icon driven software.
Features
- Holds one syringe from 0.5 µl to 60 ml
- High resolution color touch screen
- Unparalleled ease of use
- Touch pad "lock" feature
- LED light on front panel
- Full metal chassis
- Built in syringe table
- Up to 30 lb/13 kg linear force
- Advanced microstepping techniques
- Built in RS485 interface
- USB port
- I/O & TTL interface
- Continuous mode of operation
- Spill dam
- Programmable
Specifications
| Accuracy |
|
| Reproducibility |
|
| Syringes (Min/Max) |
|
| Flow Rate |
- Minimum (0.5 µl syringe): 1.28 pl/min
- Maximum (10 ml syringe): 25.99 ml/min
- Maximum (60 ml syringe): 88.28 ml/min
|
| Display |
- 4.3 WQVGA TFT Color Display with Touchpad
|
| Non-Volatile Memory |
|
| Connectors |
- RS485 - IEEE-1394 6 pos
- USB - Type B
- I/O & TTL - 15 pin D-Sub Connector
|
| Linear Force (Max) |
- 13.6 kg (30 lb) @ 100% Force Selection
|
| Drive Motor |
|
| Motor Drive Control |
- Microprocessor with 1/16 microstepping
|
Number of Microsteps
per one rev.of Lead Screw |
|
| Step Revolution |
|
| Step Rate - Minimum |
|
| Step Rate - Maximum |
|
| Pusher Travel Rate - Minimum |
|
| Pusher Travel Rate - Maximum |
|
| Power |
- 100-240 VAC: 50/60 Hz, 50 W, 0.5 A fuse
|
| Dimensions |
- 22.6 x 19.05 x 15 cm (9 x 7.5 x 5 in)
|
| Weight |
|
| Operating Temperature |
- 4 degree C to 40 degree C (40 degree F to 104 degree F)
|
| Storage Temperature |
- -10 degree C to 70 degree C (14 degree F to 158 degree F)
|
| Humidity |
- 20% to 80% RH non condensing
|
| Mode of Operation |
|
| Classification |
|
| Pollution Degree |
|
| Installation Category |
|
| Regulatory Certification |
- CE, UL, CSA, CB Scheme, EU RoHS
|
