KDS 101 Nanoliter Syringe Pump

Dual Syringe Nanoliter Pump

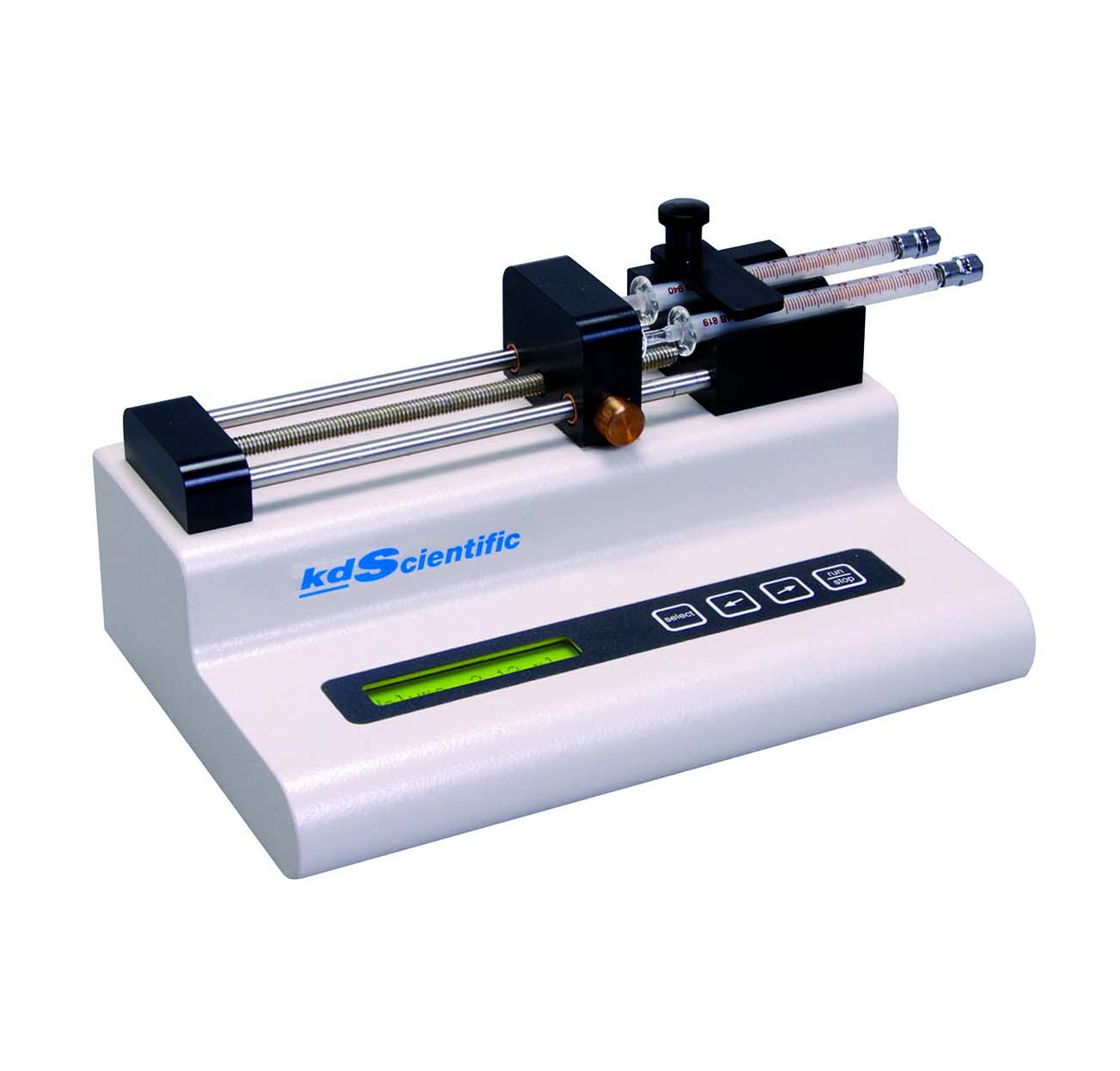

KDS 101 DUAL SYRINGE NANOLITER INFUSION PUMP

The KDS 101 Two-Syringe Nanoliter Pump is ideal for microdialysis
and similar applications which require virtually pulseless flow at
very low flow rates.

Holds 2 syringes, 10 µl to 10 ml each
Minimum flow 0.001 µl/min (10 µl syringe)

Features

Holds 2 syringes, 10 µl to 10 ml each or, a single syringe up to 60 ml
Simple menu-driven setup:
- select syringe size from displayed table
- set dispense volume
- set dispense flow rate
Easy to read bright, backlight display
Dispense volume displayed and has automatic shutoff at completion
Volume and flow rate units (µl/hr or ml/hr) are selected automatically based on syringe size
Last settings stored in permanent memory
Button release of drive nut for easy syringe installation
Choice of run / stop after a power interruption

Available versions

Code	Description
KD/789101	KDS 101 Legacy Dual Syringe, Nanoliter, Infusion Pump - 220 VAC
KD/789101J	KDS 101 Legacy Dual Syringe, Nanoliter, Infusion Pump - 110 VAC with Japanese Syringe Table

Technical specification

Max. No. of Syringes	Two (up to 10 ml)
Syringe Size	10 µl - 10 ml ( two syr) 10 µl - 60 ml ( one syr)
Dimensions	9 x 6 x 5 in. 23 x 15 x 12 cm
Weight	4.5 lb (2 kg)
Linear Force	40 lb (18 kg)
Advance Per Microstep	0.088 micron (1/2 step)
Max Step Rate (1/2 Step)	400 steps/sec
Min Step Rate	1 step /30 sec.
Accuracy	±<1%
Reproducibility	±0.1%
Audible Alarm	(Optional) **

The Legacy Series

The Legacy series is the foundation for all KD Scientific Pumps.

The Legacy pumps are acknowledged as the industry's highest valued
solution for delivering precise and smooth flow in research, pilot plants
and production applications. Simple and easy to use, these pumps are the favorite of research scientists and engineers.

They use the KDS 100/KDS 200 syringe pumps more than any other for the their outstanding reliability and performance. The KDS 100 series pumps give customers the most cost effective solution for infusing fluids.

Alternatively, the KDS 200/KDS 400 series give the customer advanced
features with RS232 and TTL interfaces. All KDS 200/KDS 400 series pumps can be daisy chained together to create a pumping network.

General Features Available on ALL Legacy pumps:

Vibration Elimination System
Flow Direction Indicator
Fast Forward/Reverse
Antisiphon Clamp (I/W Models only)
CE Approved Model 100 series are ETL listed and conforms to ANSI/UL Standard 61010-1:2004 2ND ED. Certified to CAN/CSA STD C22.2NO.61010.1:2004 2ND ED
Power Recovery Diagnostics
Optional Foot Pedal Interface
NIST Certificate Option
Alarm Option
CE Approved Models Basic Programming
Syringe Library
Flow Rate Selection
Volume Dispense Mode
Direct Entry Syringe Diameter
