3D Gyratory Rocker RG Series

3D motion rocker with clockwise and anticlockwise rotation

3D Rocker is suitable for mixing applications including, gel staining and destaining, washes, hybridisations, immune precipitation and Western blots.

Features

The shaker with clockwise and anticlockwise 3D motion, has a great rotary movement for a maximum of stirring up to 5 kg.
Your LCD display simultaneously displays frequency of shaking, and timer mode.
They are available a wide choice of platforms for the use of almost all containers of different shapes and sizes.
It has the strong and the silicone feet on the steel base construction body ensure high stability.

Specifications

Code	RG/22006023
Voltage/frequency	220V – 50/60Hz
Power	40 W
Movement	3D (Angle 9°)
Max load	5 kg
Platform dimensions	320x320 mm
Motor	"Brushless"
Speed range	10÷70 rpm
Speed display	display LCD
Timer	1 min / 20 h - continuos
Timer display	display LCD
Dimensions	(LxPxA) 420x370x100 mm
Weight	9
Range temperature use	5÷40 °C
Max humidity use	U.R. 80%
Protecnion IP	IP21 (sec. DIN EN60529)
Interface RS232	YES

Accessories

Code	Description

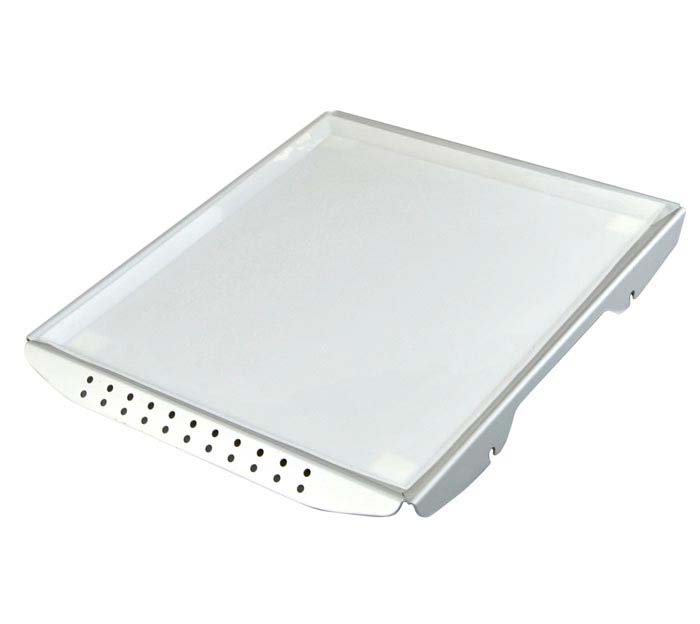

RG/22006223	Dish platform with non slip mat

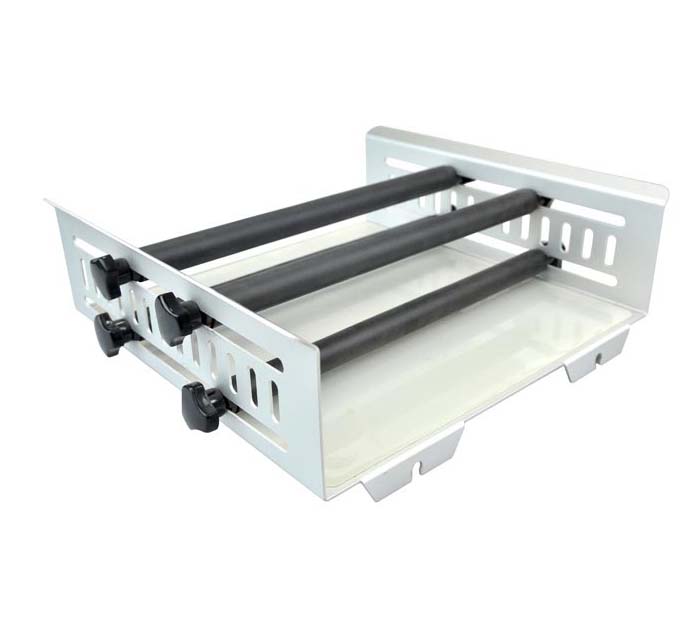

RG/22006233	Universal platform with 4 bars

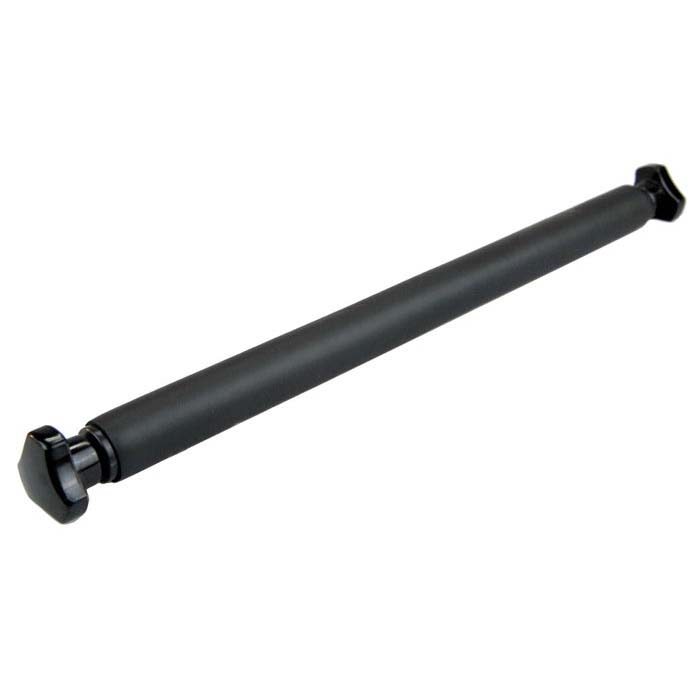

RG/22006553	Extra accessory bar

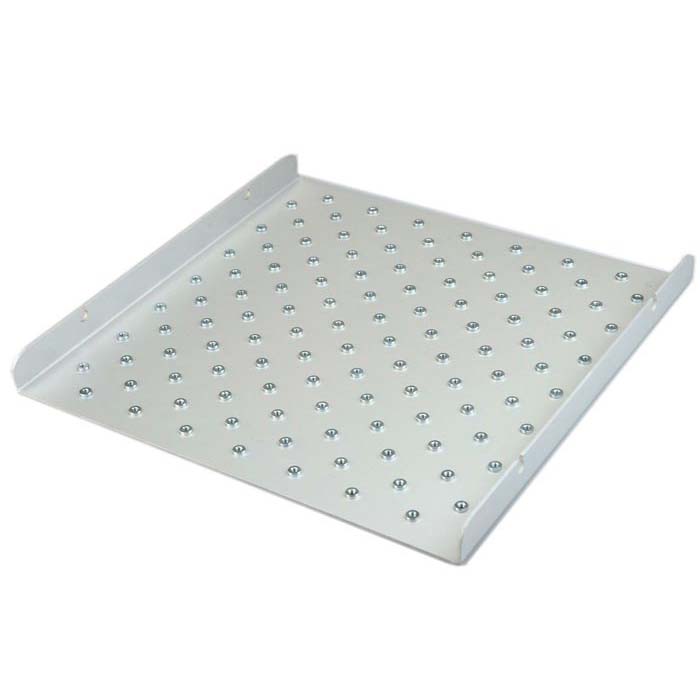

RG/22006243	Perforated platform to configure with the clamps for flasks of different capacity.

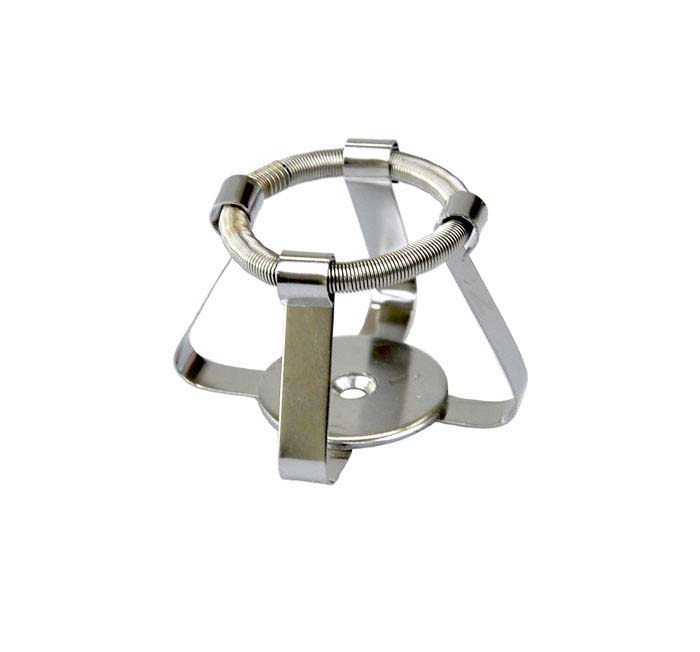

RG/22006453	Clamp for 25 ml flasks; max number of clamps for perforated platform: 28

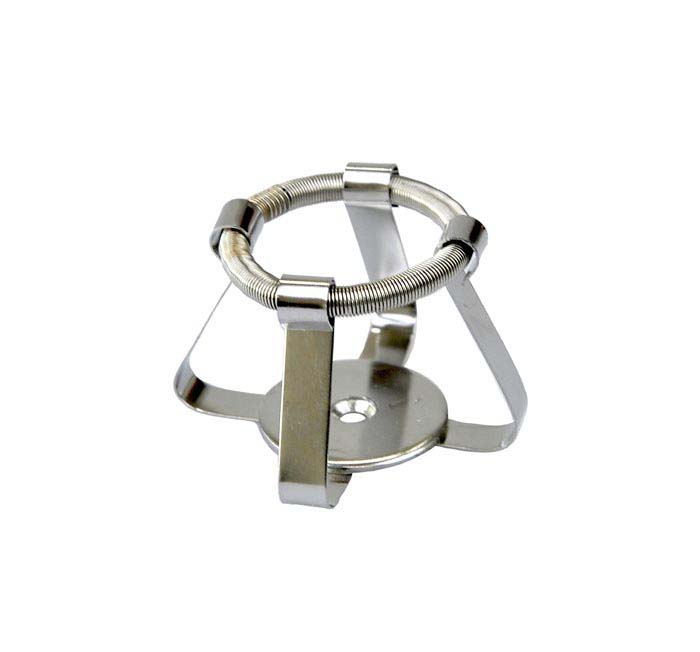

RG/22006463	Clamp for 50 ml flasks; max number of clamps for perforated platform: 28

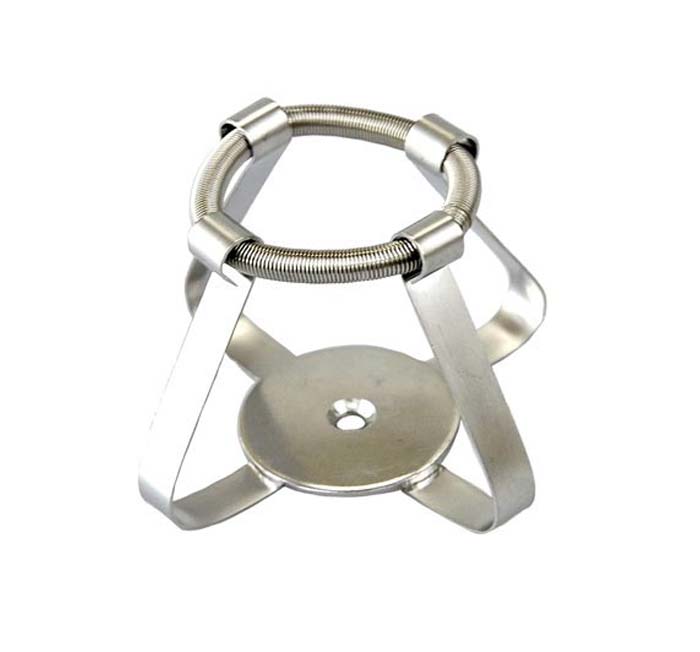

RG/22006473	Clamp for 100 ml flasks; max number of clamps for perforated platform: 16

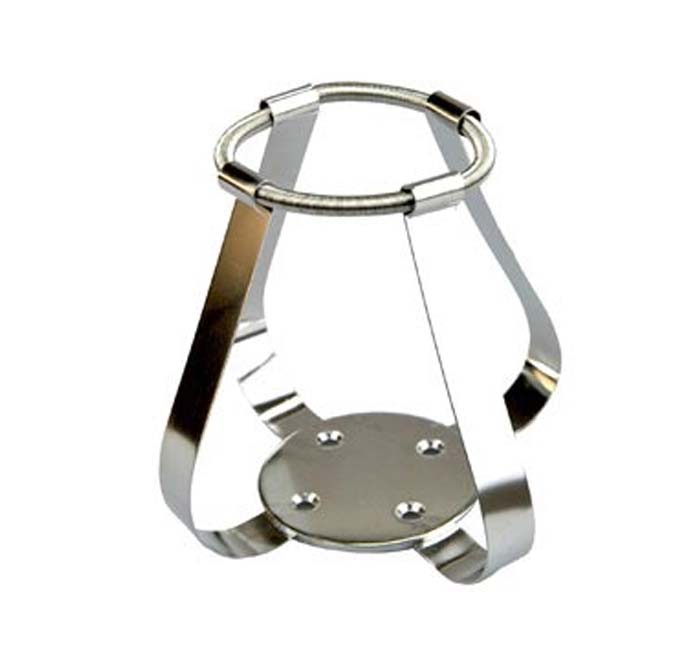

RG/22006483	Clamp for 200/250 ml flasks; max number of clamps for perforated platform: 9

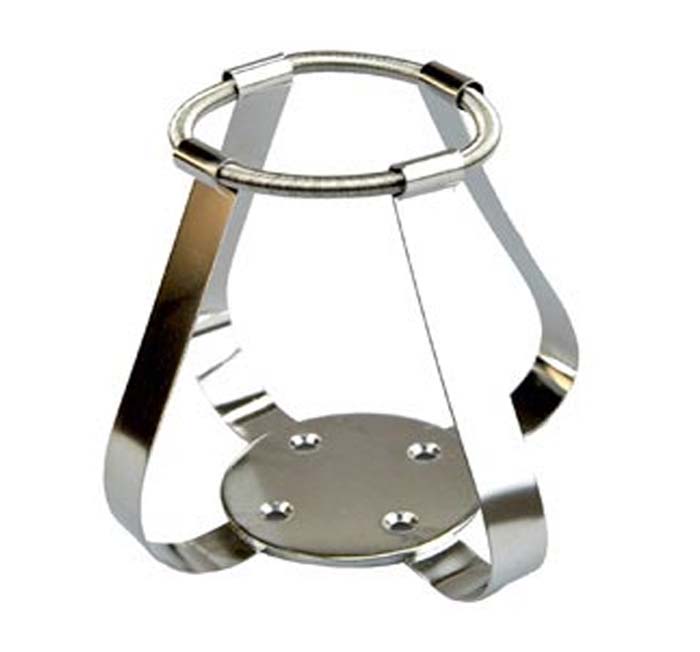

RG/22006483	Clamp for 500 ml flasks; max number of clamps for perforated platform: 9
